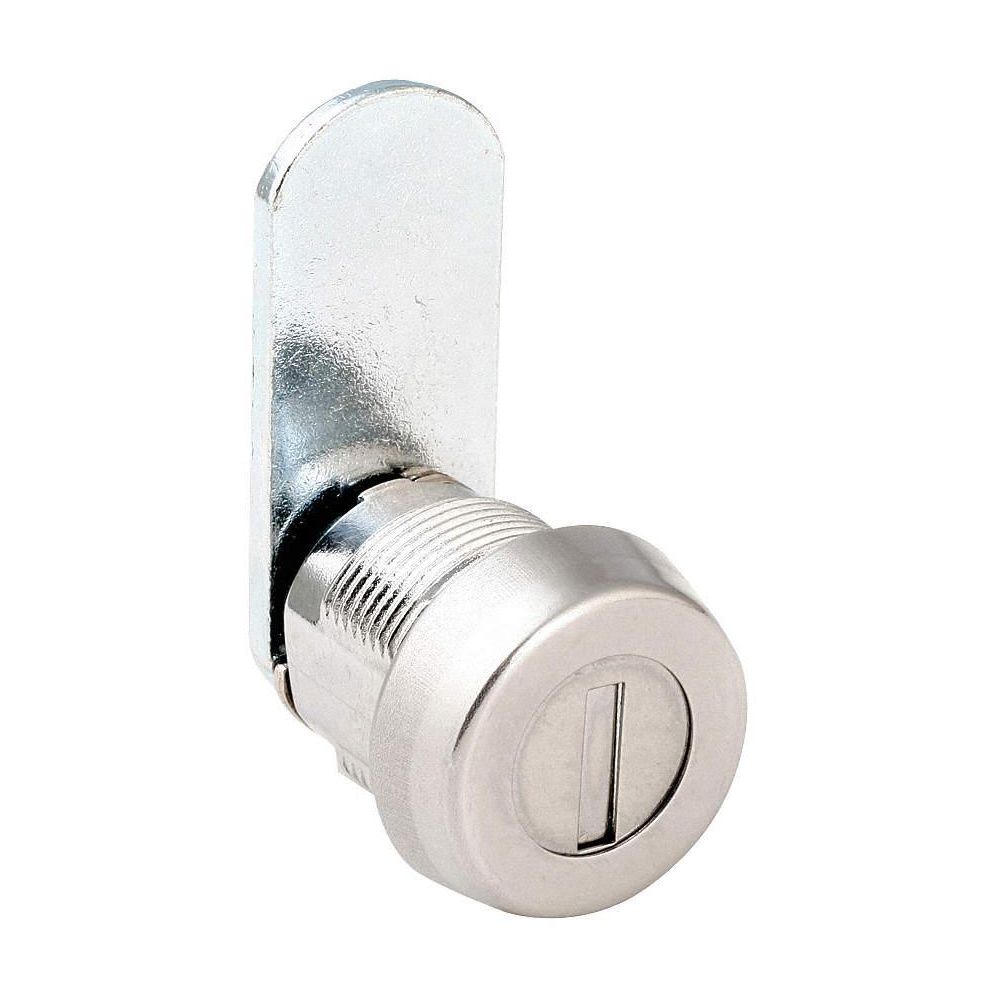

CCL Different-Keyed Standard Keyed Cam Lock, For Door Thickness (In.): 5/8, Stainless Steel
Hover over image to magnify
#921559 | Pkg Qty: 1
$11.89 pkg | $11.89 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CCL
Mfr. Part Number
62214
Cam Lock Type
Keyed
Mounting Hardware Required
Yes
Finish
Stainless Steel
Number of Keys
2
For Material Thickness
7/8 in.
Opens With
Key
Item
Disc Tumbler Keyed Cam Lock
Pack Quantity
1
Key Type
Different
Shipping Weight
.2 lb.
Maximum Latching Distance
1 in.
Weather Resistant
Yes
General
Cam Type
Straight
Lock Body Material
Stainless Steel
Cylinder Length
7/8 in
Mounting Hole Dia.
3/4 in
For Material
Metal
Number of Locks in Pack
1
Head Dia.
7/8 in
Straight Cam Dimensions
1 in L x 5/8 in W
Includes
3 Cams, 2 Stop Plates, Mounting Nut, Trim Washer, Rubber Gasket, Cam Screw
Straight Cam Length
1 in
Includes Mounting Hardware
Yes
Straight Cam Width
5/8 in
Key Code
Varies
USPS Approved
No
Key Retaining
No
Unlock Turn Direction
Clockwise, Counterclockwise
Keyed Cam Lock Type
Disc Tumbler Keyed Cam Lock
Unlocking Radius
Quarter-Turn
Latching Distance
1 in
Unlocking Radius (Deg.)
90 or 180
Lock Body Finish
Chrome-Plated
Product Description
Weather-resistant cam lock has a stainless steel dust shutter and an internal O-ring to prevent water penetration. 90°/180° clockwise/counterclockwise cam rotation option. Use for any outdoor application requiring water and salt resistance or exposure to freezing temperatures. Stainless steel finish.
Item Barcode
Weather Resistant Cam Lock 7/8
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6NVK9 | Weather Resistant |
 | UNSPSC CODES | 46171513 | |
 | VMRS (ATA) CODES | 013-010-030 | Weather Resistant |
