DAYTON

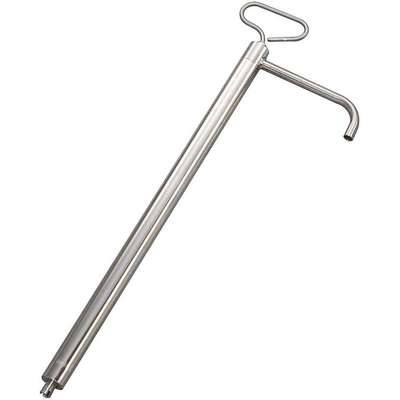

Stainless Steel Hand Operated Drum Pump, Piston, Ounces per Stroke: 8 oz.

Hover over image to magnify
Hand Drum Pump,Stainless Steel,
Hand Drum Pump,Stainless Steel,

#921289-1 | Pkg Qty: 1

$98.42 pkg | $98.42 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Action Type
Piston
Ounces per Stroke
8 oz.
Adapter Diameter
2 in.
Outlet Size
1/2" OD
Adapter Material
Polypropylene
Overall Length
45 in.
Adapter Type
2" NPT Bung
Package Quantity
1
Brand
DAYTON
Piston
PVDF
Discharge Tube Length
7"
Piston Material
PVDF
Discharge Tube Outlet ID Size
1/2"
Power Source
Hand Operated
Discharge Tube Outlet Outside Diameter
1/2" OD
Pump Body Material
Stainless Steel
Discharge Tubing Material
Stainless Steel
Seal
PTFE
For Use On
15, 30, and 55 gal. Drums
Seal Material
PTFE
Hand Operated Pump Action Type
Hand Operated Piston Pumps
Self-Priming
Yes
Housing Material
Stainless Steel
Shipping Weight
2.75 lb.
Inlet Size
1"
Suction Design
Tube
Item
Hand Operated Drum Pump
Suction Tube Length
22 in.
Maximum Liquid Temperature
140°F
Suction Tube Outlet Outside Diameter
9/16 in.
Maximum Viscosity
5000 SSU
Suction Tube Type
Tube
Metered
No
Type
Piston Action
Mfr. Part Number
4HA31
Wetted Materials
PTFE, PVDF, Stainless Steel
General
Application
Solvents, Photographic Chemicals
Includes
Straight Horizontal Spout
Bung Connection Dia.
2 in
Includes Bung Adapter
Yes
Compatible Chemicals
Antifreeze (Coolant), Automatic Transmission Fluid, Brake Fluid, DEF, Diesel Fuel, Ethyl (Ethanol), Fresh Water, Gasoline, Isopropyl (Isopropanol), Kerosene, Methyl Ethyl Ketone (MEK), Salt Water, Sodium Hypochlorite/Bleach (to 20%)
Includes Discharge Hose
No
Discharge Tube Outlet ID
1/2 in
Includes Nozzle
No
Discharge Tube Outlet OD
1/2 in
Includes Spout
Yes
Features
Good Chemical Resistance
Includes Suction Tube
Yes
For Container Size
5 gal, 15 gal, 30 gal, 55 gal
Max. Flow Rate
8 oz per stroke
For Container Type
Bucket, Drum, Pail
Max. Fluid Temp.
140 Degrees F
For Media Type
Antifreeze, Automatic Transmission Fluid, Bleach, Brake Fluid, DEF, Diesel Fuel, Ethanol, Gasoline, Isopropanol, Kerosene, Ketones, Water
Not Recommended Chemicals
Deionized Water
For Use With
Photographic Chemicals, Solvents
Pump Package Type
Basic Pump with Spout
Housing Material - Pumps
Stainless Steel
Suction Tube OD
9/16 in

Product Description

Diesel exhaust fluid (DEF) hand drum pumps are used specifically with DEF to maintain purity when filling the reservoir of a diesel engine's Selective Catalytic Reduction (SCR) system. These pumps are certified to ISO standards that regulate the handling, transportation, and storage of DEF. They are used for dispensing and transferring small volumes of DEF when servicing late model trucks and SUVs as well as SCR-based stationary industrial systems that operate on diesel fuel.
