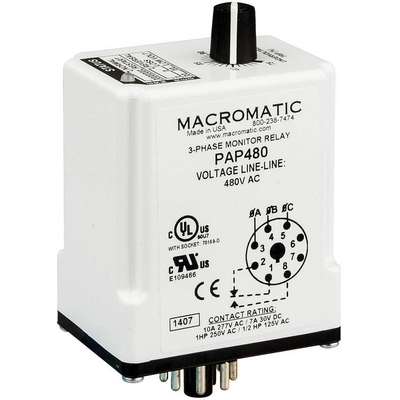

Macromatic Phase Monitor Relay, 480 VAC Input Voltage, Contact Form: SPDT, Base Type: Octal

Hover over image to magnify
3 Phase Monitor Relay,Spdt,
PI_Asset_966944
PI_Asset_966945
3 Phase Monitor Relay,Spdt,
PI_Asset_966944
PI_Asset_966945
Macromatic Phase Monitor Relay, 480 VAC Input Voltage, Contact Form: SPDT, Base Type: Octal Video

#921287-6 | Pkg Qty: 1

$67.37 pkg | $67.37 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 277 V
Phase
3
Base Type
Octal
Phase Loss Sensitivity
Yes
Brand
MACROMATIC
Phase Loss Time Delay
Fixed 0.1 sec.
Contact Form
SPDT
Phase Reversal
Yes
Drop-Out Range
75% to 95%
Phase Reversal Time Delay
Fixed 0.1 sec.
Input Voltage
480 VAC
Phase Unbalance
No
Input or Control Voltage
480 VAC
Pick Up Range
360 to 460VAC
Item
Phase Monitor Relay
Pins
8
Mfr. Part Number
PAP480
Power Rating
3
Mounting
Plug In
Resistive Contact Amp Rating
10
Number of Contacts
1
Shipping Weight
.31 lb.
Over Voltage
No
Socket
5X852
Overall Height
3-1/2 in.
Type
Voltage Sensing
Package Quantity
1
General
AC Contact Rating - Relay
10A @ 277V
Overall Height - Relay
3.5 in
Base Type - Plug In Relay
Octal
Phase - Electrical
3
Body Depth - Relay
2.4 in
Restart
Auto
Body Height - Relay
2.9 in
Restart Time Delay
Fixed 1.0 sec
Body Width - Relay
1.7 in
Socket Code - Relay
A
Contact Form - Relay
SPDT
Trip Delay
Power Up and Restart After Fault Clear: 1 sec., Drop-Out Due to Fault: 100 msec., Phase Loss and Reversal: 4 sec., Undervoltage: 4 sec.
DC Contact Rating - Relay
7A @ 30V
Under Voltage
360 to 460V AC
Mounting - Relay
Plug In
Under and Over Voltage Time Delay
Fixed 4.0 sec.
Number of Pins - Relay
8

Product Description

Macromatic's PAP Series Three-Phase Monitor Relay continuously monitors all voltages of a 480V three-phase system. It is used to protect motors and equipment from expensive damage due to phase loss, phase reversal, and undervoltage. This product detects single phasing and unbalanced voltages regardless of regenerative voltages. Unlike similar three-phase monitor relays, this relay will continue to function even with a lost phase. It is the only line-powered unit in its class to retain fault indication and continuous monitoring of all voltages during a phase loss, increasing the ease of troubleshooting and the level of protection.
