TE-CO

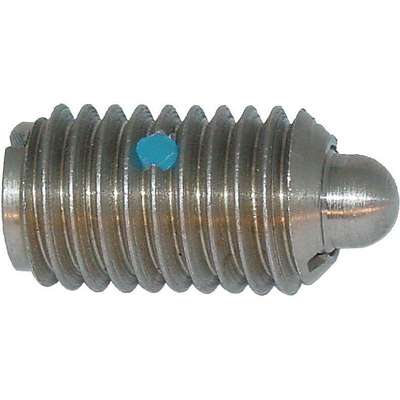

Spring Plunger, Thread Size 1/4"-20, Thread Length 17/32", Plunger Projection 0.0780"

Hover over image to magnify
Plunger,Spring,SS,1/4-20,17/32,
Plunger,Spring,SS,1/4-20,17/32,

#921254 | Pkg Qty: 5

$46.00 pkg | $9.20 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Body Length
17/32 in.
Mounting Type
Threaded
Body Material
Stainless Steel
Overall Length
17/32 in.
Brand
TE-CO
Package Quantity
5
Finish
303 Stainless Steel
Plunger
303 Stainless Steel
Force
3.00 Initial, 10.50 Final
Product Type
Spring Plunger
Function
Used In Applications When Higher End Forces Are Needed, Often Used To Raise Or Eject Parts
Shipping Weight
.03 lb.
Handle Type
Slotted Drive
Spring Material
302/304 Stainless
Item
Spring Plunger
Thread
Fully Threaded
Locking
Yes
Thread Length
17/32 in.
Material
303 Stainless Steel
Thread Size
1/4"-20
Mfr. Part Number
53403
Type
With Locking Element
General
Application
Often Used To Raise or Eject Parts
Plunger Material
Stainless Steel
Body Dia.
1/4 in
Plunger Projection
0.0780 in
Final Nose Force
10.5 lb
Retractable
No
Initial Nose Force
3 lb
Thread-Locking Element Included
Yes
Plunger Dia.
0.1190 in

Product Description

Spring Plungers

  • Thread sizes up to 5/8-11 sold in pkg. of 5 Thread sizes 3/4-10 and up sold in pkg. of 2 Choose plungers either: with locking element or without locking element
  • Apply controlled tension to workpieces. Can be used for positioning in fixtures or to eject parts from a punch press or forging die. Provide accurate spring end force with excellent wear resistance.
Item Barcode
9212540
Plunger,Spring,SS,1/4-20,17/32,
 NameItemDescription
Grainger DropshipGrainger Dropship2YLG3Plunger, Spr SS, PK5
UNSPSC CODESUNSPSC CODES31161721
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Plunger, Spring,SS,1/
