HUBBELL WIRING DEVICE-KELLEMS

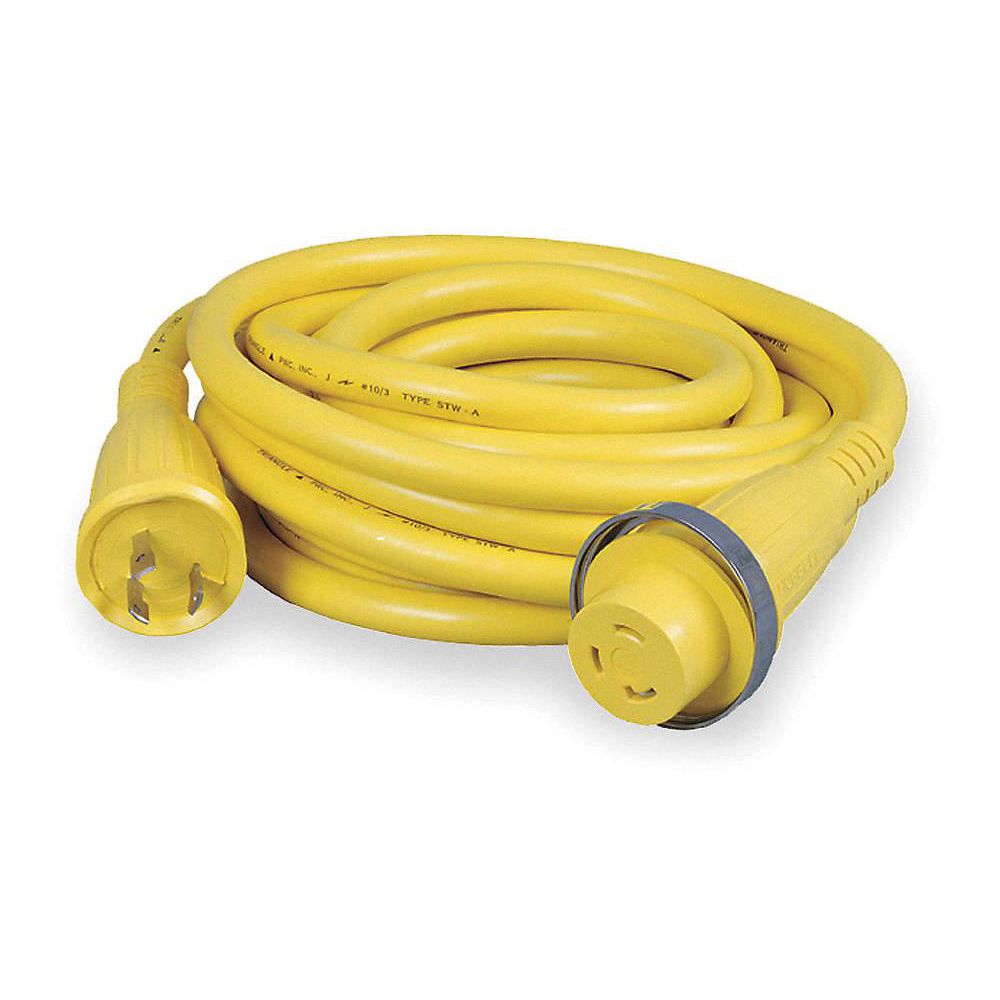

Hubbell Wiring Device-Kellems 50 ft. Indoor, Outdoor Shore Power Cable; Max Amps: 30.0, Number of Outlets: 1, Yellow

Hover over image to magnify
Extension Cordset,50 Ft.,10/3,
PI_Asset_1353533
Extension Cordset,50 Ft.,10/3,
PI_Asset_1353533

#921252 | Pkg Qty: 1

$349.69 pkg | $349.69 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Plug Configuration
L5-30P
Cord Ending Type
Single Connector
NEMA Receptacle Configuration
L5-30R
Cord Length
50 ft.
Nominal Outside Diameter
0.66 in.
Cord Shape
Round
Number of Conductors
3
Cord Type
STOW
Number of Outlets
1
Description/Special Features
Connector End Includes Metallic Sealing Ring Providing Boat Side Water Tight Interface
Package Quantity
1
Extension Cord Length
50 ft.
Plug Configuration
Straight, No Swivel
Extension Cord Outlet NEMA Configuration
L5-30
Plug Style
Straight
Extension Cord Plug NEMA Configuration
L5-30
Plug Type
Straight, No Swivel
Extension Cords Group
45 to 50 ft.
Power Indicator
No
Gauge/Conductor
10/3
Receptacle Configuration
NEMA L5-30R
Indoor/Outdoor
Indoor/Outdoor
Shape
Round
Item
Shore Power Cable
Shipping Weight
15.25 lb.
Jacket Color Family
Yellow
Standards
IP56, UL
Jacket Material
PVC
Temperature Range (Deg. F)
-4 to 140 deg. F
Lighted End
No
Trade Designation
STOW
Maximum Amps
30 A
Type
50 Feet Extension Cord
Mfr. Part Number
HBL61CM08
Voltage
125 VAC
NEC Cord Designation
STOW
Wire Size
10 AWG
NEMA Connector
L5-30R
General
Cord Shape
Round

Product Description

Outdoor extension cords with a single outlet consist of flexible electrical cable with a plug at one end and a single receptacle at the other end. They are commonly used in outdoor applications to provide power where the power source is located some distance away from the device, such as with landscaping equipment. These cords have a durable jacket that resists abrasion and harsh weather conditions, making them more robust for outdoor applications than indoor extension cords.

Extension cords are a length of flexible electrical cable used to bring power to a device located up to 100 ft. away. They are typically used when a device's cord is too short to reach a power source, such as an electrical outlet, or where outlets may be scarce. They have a two- or three-prong plug at one end that connects to the power source and a molded outlet at the other end that devices plug into. Extension cords with a single outlet have a single receptacle, while cords with multiple outlets have two or more receptacles. In general, the more power needed by a device, the thicker the extension cord (or lower the gauge) needs to be to support the electrical current flowing through the cord. Extension cords are commonly used to provide temporary power in a wide range of indoor and outdoor applications.
