HUBBELL WIRING DEVICE-KELLEMS

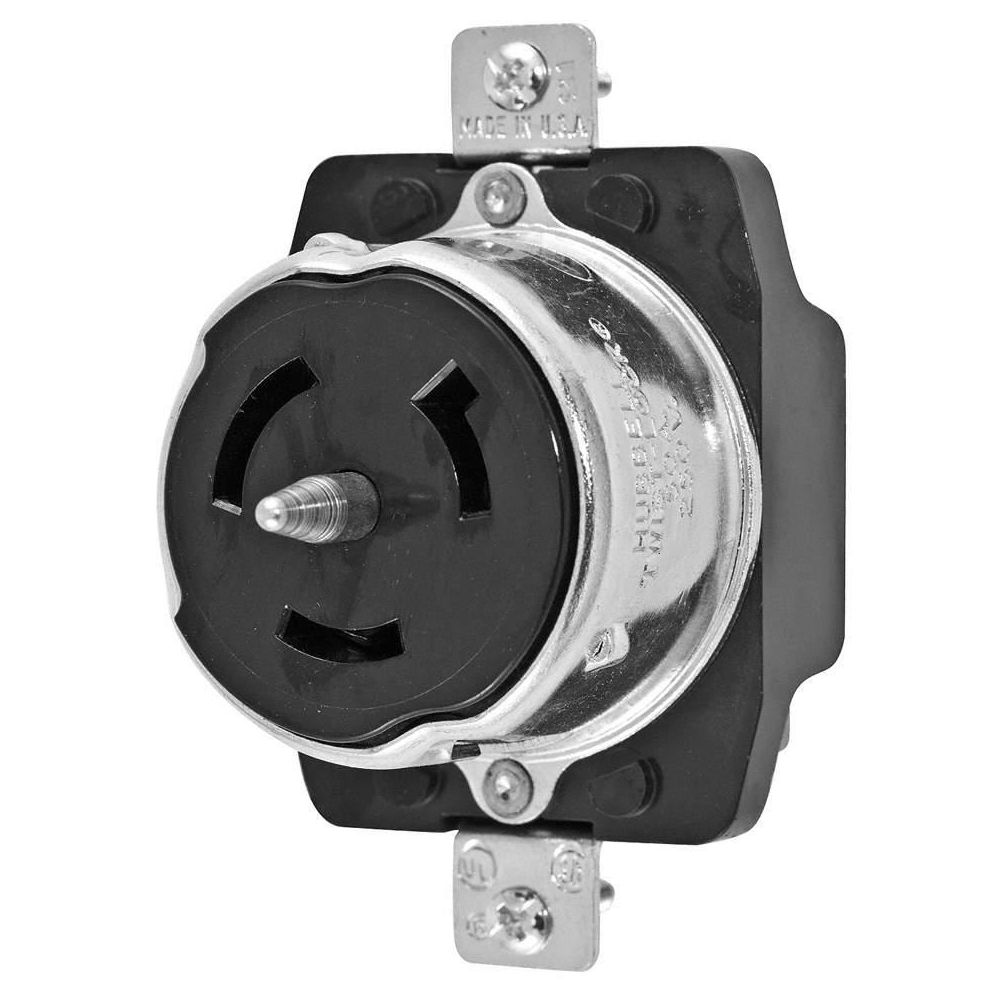

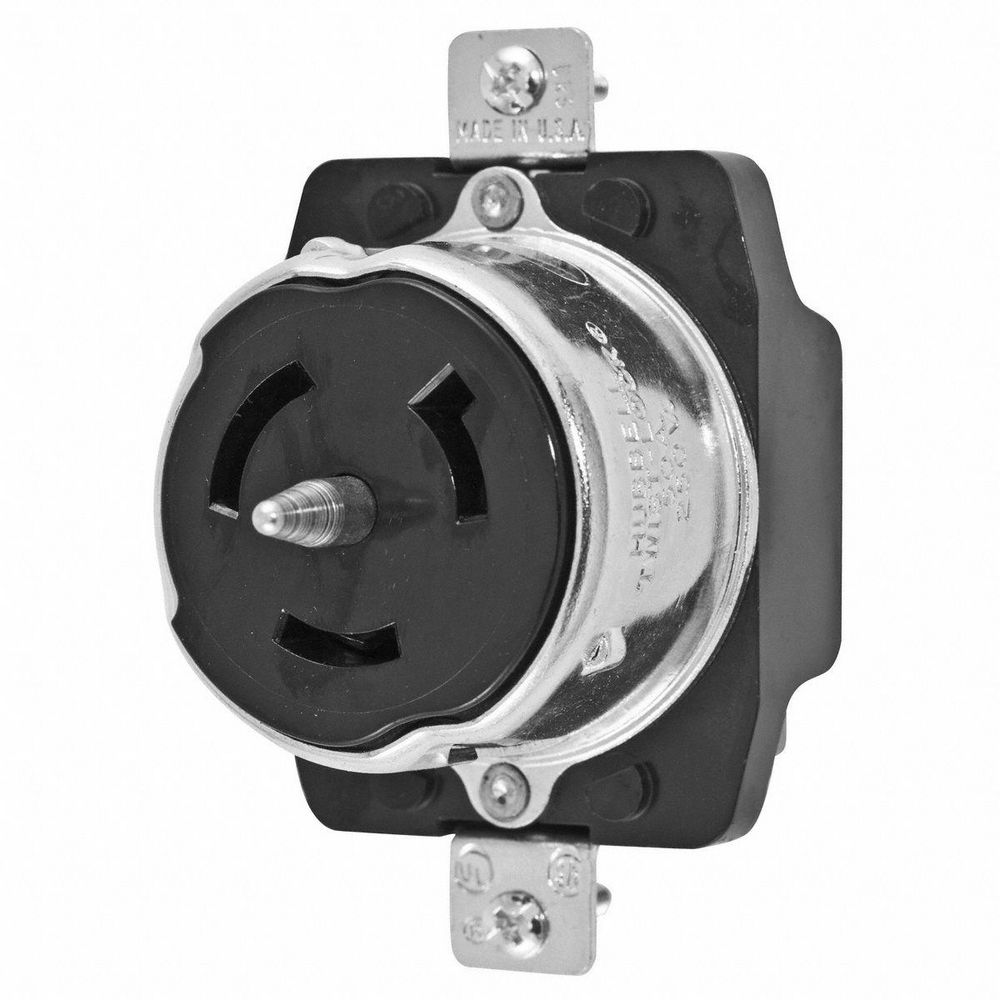

Hubbell Wiring Device-Kellems Black Locking Receptacle, 50 Amps, 250VAC Voltage, NEMA Configuration: Non-NEMA
Hover over image to magnify
#921184-3 | Pkg Qty: 1
$178.06 pkg | $178.06 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AFCI
No
Minimum Operating Temperature
-40 °C
Amperage
50 A
Minimum Wire Size
10 AWG
Amps
50 A
Mount Type
Flush
Brand
HUBBELL WIRING DEVICE-KELLEMS
Mounting Type
Flush Mount
Color Family
Black
NEMA Enclosure Rating
1
Connection Orientation
Straight
NEMA Rating
4, 4X, 12
Contact Material
Brass
NEMA Receptacle Configuration
Non-NEMA
Cover Type
No Cover
Number of Gangs
1
Current Rating
50 A
Number of Poles
2
Flange Type
Non-Flanged
Number of Wires
3
Flange Width
Not Applicable
Package Quantity
1
For Environment
Dry
Phase
Single
For Location
Indoor
Polarized
Yes
Grade
Industrial
Shipping Weight
.75 lb.
Grounding
Grounded
Shrouded
Yes
Housing Color
Black
Standards
CSA Certified C22.2 No. 42, UL 498
Housing Material
Phenolic
Sub-Category
Single Receptacles
IP Rating
IP20
Type
50A
Item
Locking Receptacle
UL 94 Flammability Rating
V-0
Material
Impact Modified PBT
Voltage
250V AC
Material of Construction
Thermoset
Voltage Rating
250V AC
Maximum Operating Temperature
75 °C
Wire Connection Type
Screw Terminals
Maximum Wire Size
6 AWG
Wiring Style
Standard
Mfr. Part Number
CS8269
General
Special Features
With Locking Cover
Product Description
50A Locking Devices
- Hubbell® Twist-Lock®
- Box terminal with Allen-head threaded lug permits high clamping pressure on conductors without damaging the threads. Receptacles have chrome-plated brass nosepieces that cannot be distorted to mate with the wrong device. Connectors and plugs have a super-tough, ribbed-nylon housing for superior impact/crush resistance and secure gripping. Stainless steel shroud on plugs protects plug blades from damage.
