SOLER & PALAU
Soler & Palau Thermoplastic Mixed Flow Duct Fan, Fits Duct Dia. 4", Voltage 120V
Hover over image to magnify
#920966-2 | Pkg Qty: 1
$151.21 pkg | $151.21 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
c-UL-US, Energy Star
Mfr. Part Number
TD-100
Bearing Type
Ball
Motor Enclosure
Totally Enclosed
Brand
SOLER & PALAU
Mounting Position
Horizontal or Vertical
Housing Diameter
5-7/16 in.
Number of Speeds
2
Housing Material
Thermoplastic
Package Quantity
1
Item
Mixed Flow Duct Fan
Shipping Weight
3.5 lb.
Length
9-1/8 in.
General
Airflow @ 0.000 in SP
101 cfm
Motor IP Rating
IP44
Airflow @ 0.000 in SP - Range
0 to 249 cfm
Motor Output Power
26 W
Airflow @ 0.000 in. SP - Range
0 to 999 cfm
Motor Speed
2,500 RPM
For Fan Type
In-Line Duct Fan
Nameplate Voltage
120V AC
Green Certification/Other Recognition
HVI® Certified
Nominal Voltage
120V AC
High-Efficiency Motor
No
Overall Dimensions H x W
3 3/4 in x 3 3/4 in
Includes

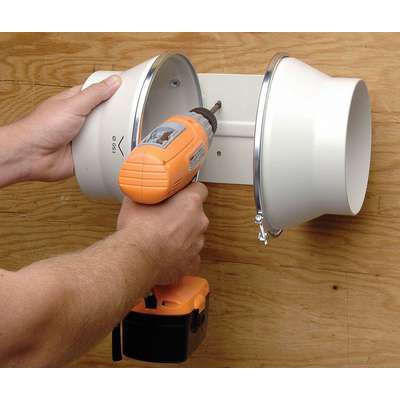

Mounting Bracket
Speed Controllable
Yes
Maximum Inlet Air Temperature
104 Degrees F
Product Description

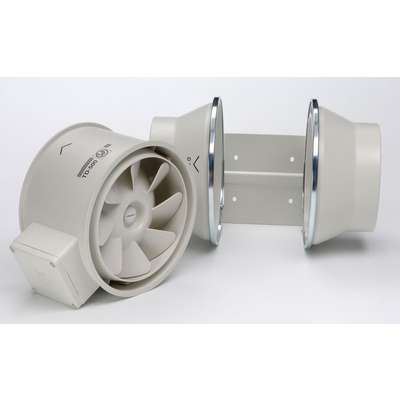

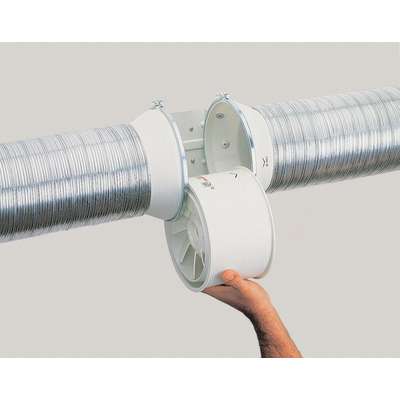

Low-profile S&P TD-MIXVENT series mixed flow in-line duct fan delivers excellent airflow-to-pressure ratio. Motor-impeller assembly can be removed without interfering with attached ducting.
Expertly Selected Product Pairings
Item Barcode
Mixed Flow Duct Fan,4 In. Dia.
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3CGA3 | Mixed Flow Duct Fan,4 |
 | UNSPSC CODES | 40101604 | |
 | VMRS (ATA) CODES | 053-006-009 | Mixed Flow Duct Fan,4 |
