LARSON ELECTRONICS LLC

Larson Electronics Llc Explosion Proof Lighting Fixture, Dimmable No, 100 to 277V AC, 11 to 25V AC

Hover over image to magnify

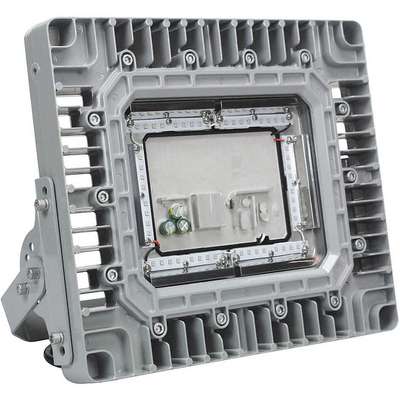

Explosion Proof Lighting,100W,
Explosion Proof Lighting,100W,

#920911-1 | Pkg Qty: 1

$6,173.96 pkg | $6,173.96 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
LARSON ELECTRONICS LLC
Length
16-37/64 in.
Finish
Powder Coated
Mfr. Part Number
EPL-HB-100LED-RT-UVA
Height
7-21/32 in.
Mounting
Adjustable U-Bracket
Housing Material
Aluminum
Pack Quantity
1
Item
Explosion Proof Lighting Fixture
Shipping Weight
30 lb.
Lamp Included
No
Voltage
120 to 277 VAC
Lamp Type
Integrated LED
Width
13-13/16 in.
Lamp Watts
100 W
General
Ambient Temp. Range
-58 Degrees to 149 Degrees F
Lighting Certification
Unrated
BAA Compliant
Yes
Max. Ambient Temp.
149 Degrees F
CA Title 24 Compliant
Yes
Max. Fixture Wattage
100 W
Emergency Battery Backup
No
Min. Ambient Temp.
-58 Degrees F
Fixture Rated Life
50,000 hr
Mounting Location
Cable, Ceiling, Pendant, Wall
Fixture Voltage
100 to 277V AC, 11 to 25V AC
Mounting Style
Pendant, Swivel
For Bulb Shape
Integrated LED
Number of Bulbs
1
For Bulb Type
LED
Overall Width
16 in
For Max. Bulb Wattage
100 W
Safety Rating
Class I, Division 1, Groups C, D, Class I, Division 2, Groups A, B, C, D, Class II, Divisions 1 and 2, Groups E, F, G, Class III
For Number of Bulbs
1
Series
EPL-HB
Hazard Classification
Class I/Division 1, Class I/Division 2, Class II/Division 1, Class II/Division 2, Class III
Standards
Class I, Divisions 1 and 2, Groups C and D, Class II, Divisions 1 and 2, Groups E,F,G, Class III, Divisions 1 and 2, Certified to UL 844 Ed. 13, Certified to UL 1598, Certified to C22.2 No. 137 Rev 2009, Certified to C22.2 No. 250.0, Paint Spray Booth Approved, T5 Temperature Rating, IEC 60529 Tested - IP67 Rated Waterproof
Includes
3/4 in Pendant and Swivel Mount
Temperature Code
T5
Ingress Protection Rating
67
UL/CSA/ETL Listed
C22.2, UL 844 Listed, UL Listed
Lamp Watts - Fixtures
100.0 W

Product Description

Hazloc high bay lights deliver bright, uniform illumination from high ceilings and open trusses to floors and work surfaces below. They mount at greater heights than other types of hazardous location fixtures to illuminate factories, warehouses, and other large, open spaces in hazardous locations. Their built-in LED arrays eliminate the need to replace bulbs and typically last for years before requiring a replacement driver.
