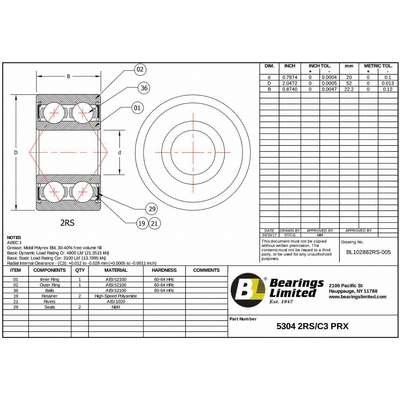

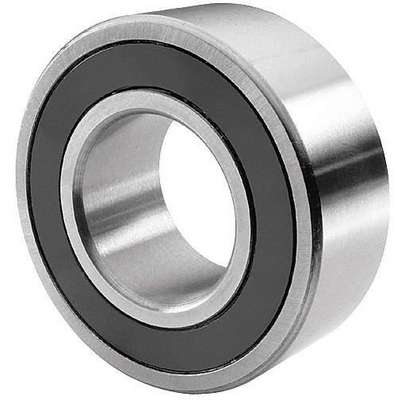

Angular Contact Ball Bearing: 20 mm Bore Dia., 52 mm Outside Dia., 22.2 mm Width, Double Row

Angular Contact Ball Bearing,
PI_Asset_1501590

#920909Pkg Qty: 1

$22.81 pkg

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Angular Contact Ball Bearing Cage Material
Double Row
Bore Diameter
20 mm
Brand
BL
Dynamic Load Capacity
4800
Item
Angular Contact Ball Bearing
Lubrication
Polyrex EM Grease
Maximum RPM
11000 RPM
Mfr. Part Number
5304 2RS/C3 PRX
Outside Diameter
52 mm
Package Quantity
1
Seal Material
Nitrile Rubber
Shipping Weight
.5 lb.
Static Load Capacity
3100
Temperature Range (Deg. F)
-40° to 350°
Type
Double Row
Width
22.2 mm

Product Description

Angular Contact Ball Bearing, Type Double Row, Bore Dia. 20 mm, Outside Dia. 52 mm, Width 22.2 mm, 11,000 RPM Max. RPM, Dynamic Load Capacity (Lb.) 4,800, Dynamic Load Capacity (N) 21,351.463776, Static Load Capacity (Lb.) 3,100, ABEC Tolerance 1, Temp. Range (F) -40 Degrees to 350 Degrees , Cage Material Polyamide, Seal Material Nitrile Rubber, Lubrication Polyrex EM Grease
