HUBBELL WIRING DEVICE-KELLEMS

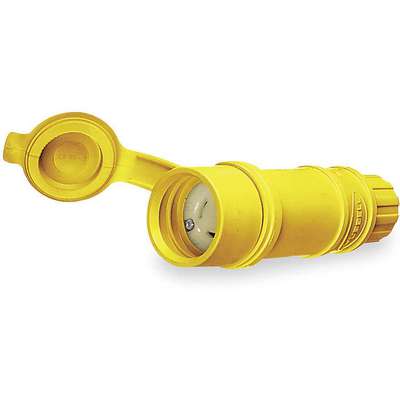

Hubbell Wiring Device-Kellems 15 Amp Industrial Grade Locking Connector, L5-15R NEMA Configuration, Yellow
#920883-8 | Pkg Qty: 1
$52.13 pkg | $52.13 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
15 A
Mfr. Part Number
HBL25W47
Amps
15 A
Midget Locking
No
Antimicrobial
No
Minimum Operating Temperature
-40 °C
Body Material
Nylon
Minimum Wire Size
18 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Configuration - Plugs & Connectors
L5-15
Cap Type
Press-On Cap
NEMA Plug Configuration
L5-15R
Color Family
Yellow
NEMA Receptacle Configuration
L5-15R
Connection Orientation
Straight
Number of Poles
2
Contact Material
Brass
Number of Wires
3
Cord Size
0.300 in to 0.655 in
Outside Diameter
1.76 in.
Corrosion Resistant
No
Overall Length
1.76 in.
Current Rating
15 A
Package Quantity
1
Description
Elastogrip, Grounding
Phase
Single
For Maximum Cable Diameter
0.655 in.
Power Indicating Light
No
For Minimum Cable Diameter
0.3 in.
Power Indicator
No
Grade
Industrial/Commercial
Shipping Weight
.25 lb.
Grounding
Grounded
Shrouded
No
Housing Color
Yellow
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Housing Material
Thermoplastic Elastomer
Subcategory
Connectors
IP Rating
IP20
UL 94 Flammability Rating
HB
Item
Locking Connector
Voltage
125VAC
Material
Elastomer
Voltage Rating
125V AC
Material of Construction
Elastomer
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
Maximum Wire Size
10 AWG
General
Amps - Plugs and Receptacles
15
NEMA Plug Configuration - Plugs and Receptacles
L5-15R
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
125V AC
Product Description
Locking Devices
- Hubbell NEMA Devices
- Impact- and crush-resistant nylon construction withstands industrial chemicals, solvents, and hydrocarbons. Plugs and connectors have 2-part offset jaw cord grips and totally insulated dead-front construction. Receptacles have a thermoplastic base, all-brass grounding system, and 1-pc. contact with long spring arm and oxide cutting nibs. CSA Certified.
