CADDY

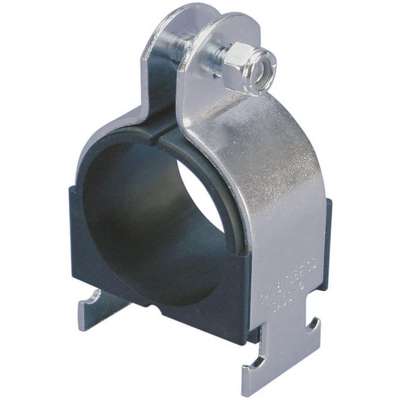

Tubing Strut Cushion Clamp, Electro-Galvanized Steel with Polypropylene Cushion
Hover over image to magnify
#920732-9Pkg Qty: 1
$9.99 pkg | $9.99 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CADDY
Mfr. Part Number
CCC0137
Item
Strut Cushion Clamp
Package Quantity
1
Length
2-71/100 in.
Pipe Size
1-1/4 in.
Material
Electro-Galvanized Steel with Polypropylene Cushion
Shipping Weight
.23 lb.
Metal Detectable
Yes
Width
1-281/500 in.
General
Clamp Material
Steel
Installed Height
2 45/64 in
Clamp Material Finish
Zinc Chromate
Maximum Operating Temperature
145 Degrees F
Clamp Style
Cushioned Strut Clamp
Mount Type
Strut Channel
Clamp Type
Strut Clamp
Mounting Location
Strut
Cushion Material
Polypropylene
Overall Length
2 45/64 in
Cushioned
Yes
Overall Width
1 9/16 in
Description/Special Features

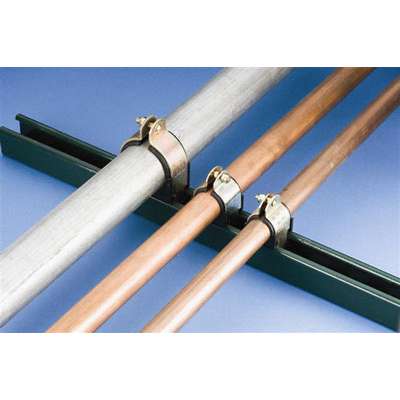

Ideal For Multiple Runs While Absorbing Shock and Vibration
Resistance Properties
Corrosion Resistant
Features
Nylon Locknut, Reduces Noise and Absorbs Shock, Square Neck of Carriage Bolt
Series
nVent Caddy
For Copper Tube Size
1 1/4 in
Standards
FM Approved
For Maximum Outside Diameter
1 3/8 in
Strut Clamp Material
Zinc Chromate Steel
For Strut Channel Width
1 5/8 in
System of Measurement
Inch
For Use On
Pipe, Tube
Temperature Rating
General Purpose
Product Description

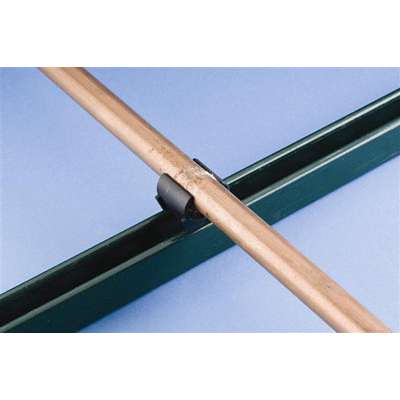

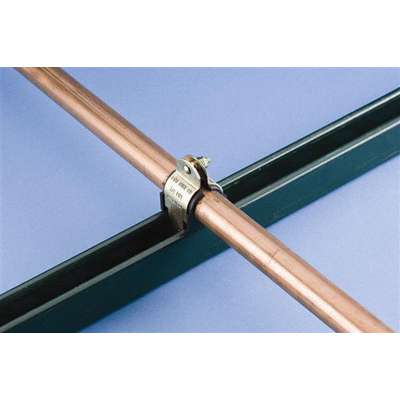

These strut cushion clamps help to absorb shock and vibration, reduce unwanted noise, and prevent galvanic corrosion. They fit any standard 1-5/8"W strut channel. The interlock edges and channel locator legs help to ensure that the cushion remains in place. They also feature corrosion-resistant, yellow dichromate-plated steel with elastomer cushioning.
