OMRON

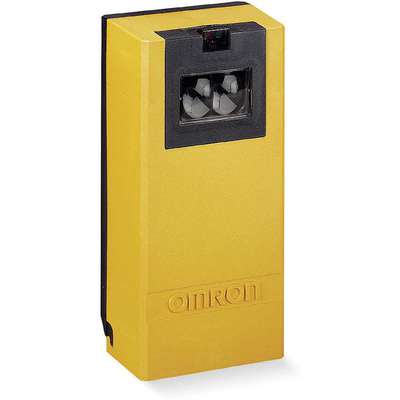

Omron 185mm Selectable Light On/Dark On Rectangular Photoelectric Sensor; Sensing Method: Retroreflective
Hover over image to magnify
#920647-8 | Pkg Qty: 1
$493.10 pkg | $493.10 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Plastic
Mfr. Part Number
E3KR10K4
Brand
OMRON
NEMA Rating
1, 4, 4X, 12, 13
Circuit Type
DPDT
Operating Modes
Selectable Light On/Dark On
Depth
2-1/2 in.
Operating Temperature Range
-2 deg. C to 5 deg. C
Electrical Connection
Screw Terminal
Output Circuit Type
DPDT
Footnotes
13789
Output Mode
Selectable
Height
185 mm
Power Requirement
42 to 240VAC/24 to 240VDC
IP Rating
67
Response Time
30 msec
Item
Photoelectric Sensor
Sensing Method
Retroreflective
Length
7.3 in.
Shape
Rectangular
Light Source
Red, Green and Yellow LED
Shipping Weight
2.4 lb.
Maximum Amps
10
Style
Rectangular Photoelectric Sensor
Maximum Load Current
10A
Type
Conduit Connection
Maximum Sensing Distance
10m
Voltage Range
24-240 VDC
Maximum Sensing Distance - Rectangular Photoelectric Sensor
10.0m
Width
3-1/2 in.
General
Depth - Rectangular Photoelectric Sensor
64 mm
Output Circuit Type - Rectangular Photoelectric Sensor
DPDT
Electrical Connection - Rectangular Photoelectric Sensor
Screw Terminal
Power Requirement - Rectangular Photoelectric Sensor
42 to 240V AC/24 to 240V DC
Features
DC Power Supply Reverse Polarity Protected
Sensing Method - Rectangular Photoelectric Sensor
Retroreflective
Height - Rectangular Photoelectric Sensor
185 mm
Shape - Rectangular Photoelectric Sensor
Rectangular
Operating Mode - Photoelectric Sensor
Selectable Light On/Dark On
Standards
CSA Certified
Operating Temp. Range
-25° to 55°C
Style - Rectangular Photoelectric Sensor
Rectangular Photoelectric Sensor
Operation Mode
Selectable Light On/Dark On
Width - Rectangular Photoelectric Sensor
89 mm
Product Description
This heavy-duty reflective sensor offers long sensing distance and mutual interference protection.
Expertly Selected Product Pairings
Item Barcode
Photoelectric Sensor,Rectangl,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2A183 | Photoelectri c Sensor, |
 | UNSPSC CODES | 39121528 | |
 | VMRS (ATA) CODES | 053-006-009 | Photoelectri c Sensor, |
