OMRON

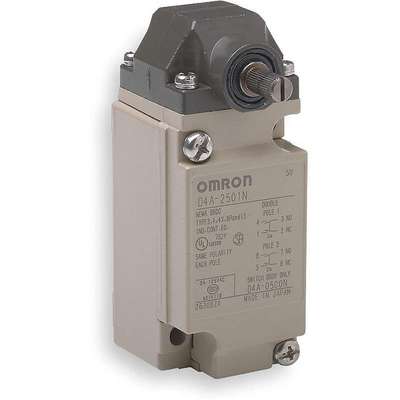

Omron Plunger, Roller Heavy Duty Limit Switch; Location: Top, Contact Form: DPDT, Top Movement
Hover over image to magnify
#920647 | Pkg Qty: 1
$272.17 pkg | $272.17 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
5 A @ 600 V
Limit Switch Style
Heavy Duty Limit Switch
Actuator Location
Top
Mfr. Part Number
D4A2510N
Actuator Style
Plunger
Movement
Top
Amperage
5 A
NEMA Rating
3, 4, 4X, 6P, 12, 13
Basic Actuator Style
Plunger
Operating Force
17.7N-m
Body Depth
1.73 in.
Operating Temperature Range
212 deg. F
Body Height
2.97 in.
Package Quantity
1
Body Material
Aluminum
Replacement Body
2CLT7
Body Style
Miniature
Replacement Head
2CLU7
Body Width
1.65 in.
Replacement Receptacle
2CLT6
Boot Sealed Actuator
No
Series
D4A
Brand
OMRON
Shipping Weight
.88 lb.
Contact Form
DPDT
Style
Top Plunger Roller
DC Contact Rating
Not Rated
Threaded for Panel Mounting
No
Depth
1.73 in.
Travel
Maximum Pre-Travel N/A, Minumum Over-Travel N/A
Electrical Connection
Screw Terminals
Type
Heavy Duty
Hazardous Location
No
Voltage
600 VAC
Height
9.1 in.
Voltage Rating
600 VAC
IP Rating
67
Width
1.65 in.
Item
Heavy Duty Limit Switch
Wiring Entry
1/2 in. NPT
General
AC Contact Rating - Limit Switch
5A @ 600V
Contact Form- Switches
DPDT
Actuator Location - Limit Switch
Top
Mounting - Limit Switch
Surface
Actuator Style - Limit Switch
Plunger, Roller
Mounting Hole - Limit Switch
(2) 0.20 in dia
Basic Actuator Style - Limit Switch
Plunger
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Body Depth - Limit Switch
1.73 in
Mounting Hole Spacing - Limit Switch
2.34 in x 1.16 in
Body Height - Limit Switch
2.97 in
Operating Temp. Range
-4° to 212°F
Body Style - Limit Switch
Miniature
Standards
UL, CSA
Body Width - Limit Switch
1.65 in
Stem Thread - Limit Switch
No Stem
Boot Sealed Actuator - Limit Switch
No
Threaded for Panel Mounting - Limit Switch
No
Product Description
This heavy duty limit switch features a plunger actuator and screw-terminal connectors.
