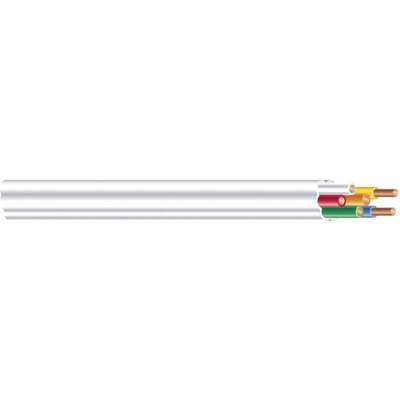

Non Plenum Thermostat Cable with 6 Conductors and Wire Size of 18 AWG, White

Zoom Icon
Secondary Item Image
6CGV3_1

#920638 | Pkg Qty: 1

$101.22 pkg | $101.22 ea
Item Number 920638
Scanner Description Thermostat Cable,250ft,White,
Inventory Status Drop Ship Item
Weight 9.59 lb
Brand SOUTHWIRE COMPANY

Technical Specifications

Brand
SOUTHWIRE COMPANY
Number of Conductors
6
Cable Rating
CL2
Pack Quantity
1
Cable/Wire Type
Non Plenum
Package Type
Spool
Gauge/Conductor
18/6
Spool/Coil Length
250 ft.
Item
Thermostat Cable
Standards
Article 725, UL Listed
Jacket Color
White
Voltage (V)
150
Max. Temp.
60°C
Wire and Cable Item
Thermostat Cable
Mfg Part Number
56945502
Wire/Cable Size
18 AWG
Nominal Outside Diameter
0.18

Product Description

Nonplenum-rated thermostat wire is electrical cable that has been rated for installation in non-air-circulating spaces in buildings, such as closed walls. It is often used to connect thermostat controls to a main power circuit via the ceiling. It is less expensive than plenum thermostat wire, but is more toxic if it burns. It is commonly used in commercial buildings with fewer people present, such as warehouses and distribution centers.

Item Barcode
9206380
  Name Item Description
Grainger Dropship Grainger Dropship 6CGV3 Thermostat Cable,250ft,
UNSPSC CODES UNSPSC CODES 26121613
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Thermostat Cable,250ft,
