SQUARE D

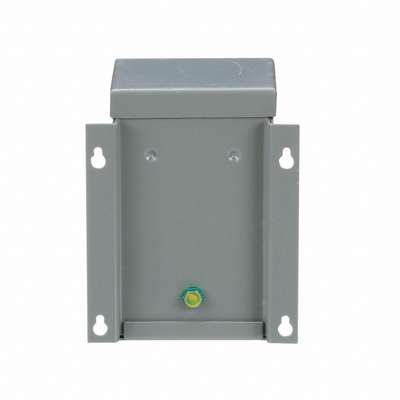

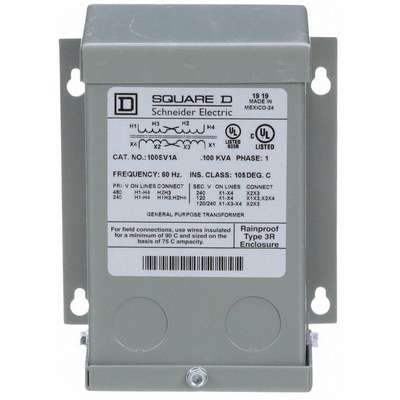

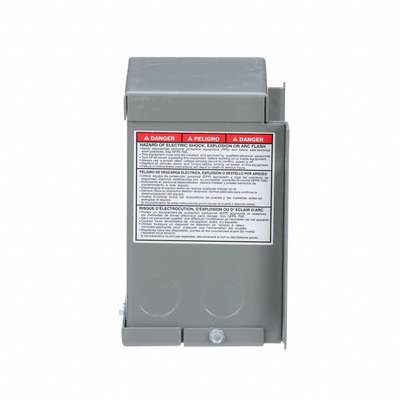

Square D Single Phase Transformer, 120 VAC, 240 VAC Output, 240 VAC, 480 VAC Input

Hover over image to magnify
Transformer,100VA,120/240V,Wall
PI_Asset_1984320
PI_Asset_1988391
PI_Asset_1991460
PI_Asset_1992416
Transformer,100VA,120/240V,Wall
PI_Asset_1984320
PI_Asset_1988391
PI_Asset_1991460
PI_Asset_1992416

#920467-3 | Pkg Qty: 1

$260.41 pkg | $260.41 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
SQUARE D
Mfr. Part Number
100SV1A
Color Family
Gray
Mfr. Warranty Length
1 yr.
Depth
3-1/2 in.
Mounting
Wall
Enclosure Finish
Powder Coated
Outdoor Rated
Yes
Enclosure Material
Steel
Output Voltage
120/240 VAC
Enclosure Rating
NEMA 3R
Package Quantity
1
Enclosure Type
Indoor/Outdoor
Phase
1
Height
5-1/2 in.
Shipping Weight
6.45 lb.
Hz
60
Temperature Rise
55C
IP Rating
54
Transformer Winding Material
Copper
Input Voltage
240/480 VAC
VA Rating
100 VA
Item
Single Phase Transformer
Voltage Function
Step Down
Knockout Size
1/2 in.
Width
4-1/2 in.
General
Hz - Electrical
60 Hz
Phase - Electrical
Single
Input Voltage - Transformer
240V AC, 480V AC
Standards
NEMA ST-20, CSA Certified, cULus Label
Knockout Size - Transformer
1/2 in
Temp. Rise
55°C
Mounting - Transformer
Wall
VA Rating - Transformer
100 VA
Outdoor Rated - Transformer
Yes
Voltage Function - Transformer
Step Down
Output Voltage - Transformer
120V AC, 240V AC
Winding Material - Transformer
Copper

Product Description

Export transformers are designed to accommodate voltage systems world-wide. Their stainless steel enclosures provide better corrosion resistance than standard painted enclosures.
