MARATHON MOTORS

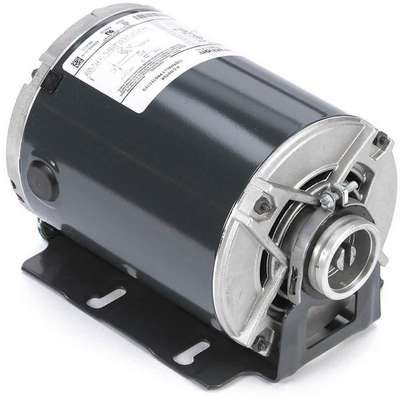

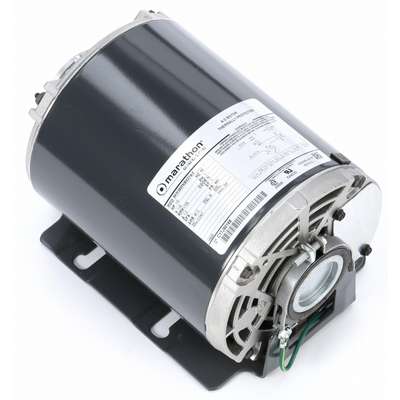

Marathon Motors Carbonator Pump Motor, 1/2 HP, Split-Phase, Nameplate RPM 1,725, 48Y Frame, Voltage 115V AC

Hover over image to magnify
Pump Motor,Split Ph,1/2 Hp,
PI_Asset_1499426
Pump Motor,Split Ph,1/2 Hp,
PI_Asset_1499426

#920431-9 | Pkg Qty: 1

$339.51 pkg | $339.51 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bearings
Ball
Motor Type
Split-Phase
Brand
MARATHON MOTORS
Mounting
Cradle Base
Duty
Continuous
NEMA/IEC Frame
48Y
Duty Cycle
Continuous
Nameplate RPM
1725
Enclosure
Open Dripproof
Overall Length
8-3/4 in.
Frame
48Y
Package Quantity
1
Full Load Amps
7.2
Phase
Single
Height
5-13/16 in.
Rotation
CW/CCW
Hz
60
Service Factor
1.2
Insulation Class
B
Shaft Length
3/16 in.
Item
Carbonator Pump Motor
Shipping Weight
17 lb.
Length Less Shaft
8-9/16 in.
Thermal Protection
Auto
Mfr. Part Number
5KH36MNB637X
Voltage
115 VAC
Motor Design
Split-Phase
General
Body Dia.
5.6 in
Motor Shaft Rotation
CW/CCW
HP
1/2
Motor Sub Application
Carbonator Pump
Ins. Class
B
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 °C
No. of Speeds
1
Motor Application
Pump
Nominal Efficiency
66 %
Motor Bearings
Ball
RPM Range
1,701-1,800
Motor Enclosure Design
Open Dripproof
Shaft Dia.
5/8 in
Motor Frame Material
Steel
Standards
CE Mark, CSA Certified, UL Recognized
Motor Mounting Position
All Angle
Usable @ 200V
No
Motor Mounting Type
Cradle Base
Usable @ 208V
No
Motor Service Factor
1.2
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC

Product Description

Split-phase carbonator pump AC motors are single phase with a lower starting torque for softer startup where the pump must gradually come up to speed after startup. They have an open dripproof (ODP) enclosure with ventilation openings in the endshields and shell positioned so that drops of liquid falling within 15° from vertical will not affect motor performance.
