SQUARE D

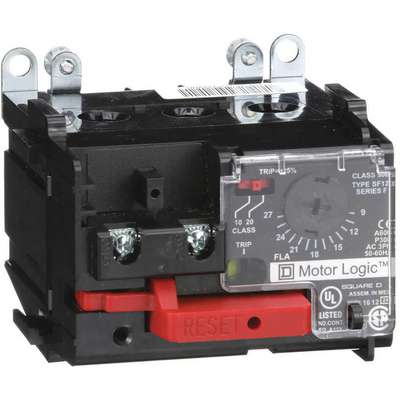

Square D Electronic NEMA Overload Relay, Current Range: 9.0 to 27.0A, NEMA Size: 1
Hover over image to magnify
#920406-9 | Pkg Qty: 1
$256.54 pkg | $256.54 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SQUARE D
Package Quantity
1
Current Range
9.0 to 27.0A
Sensing Method
Electronic
Depth
6.3 in.
Shipping Weight
.99 lb.
Height
5-1/2 in.
Starter Type
NEMA
Item
NEMA Overload Relay
Type
NEMA
Mfr. Part Number
9065SF120
Voltage
600 VAC
Number of Poles
3
Width
5.4 in.
General
Body Depth - Relay
3.9 in
Reset Type - Relay
Manual
Body Height - Relay
2.69 in
Separate Mounting
Yes
Body Width - Relay
3.26 in
Standards
UL, CSA, NOM, CE Marked
Features
Ground Fault Detection
Thermal Units Required
No
For Use With
Mfr. Class 8536 Starters
Trip Class
10/20
NEMA Size
1
Trip Class - Overload
10, 20
Overall Height - Relay
5.5 in
Use With - Contactors and Starters
Mfr. Class 8536 Starters
Overload Relay Current Range
9.0 to 27.0A
Product Description
Motor Logic™ Overload Relays
- 3-phase, 60/50 Hz, 600VAC 3:1 current adjustment range Class 10/20 selectable thermal protection
- Heaterless construction with adjustable full-load amps. Relays are protected against phase loss and phase imbalance. Mount separately or use to retrofit an existing Square D Type S starter. Select overload relay by full load amp current range.
Item Barcode
Overload Relay,9 To 27A,Class
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 21AM85 | Overload Relay,9 to |
 | UNSPSC CODES | 39122330 | |
 | VMRS (ATA) CODES | 053-006-017 | Overload Relay,9 to |
