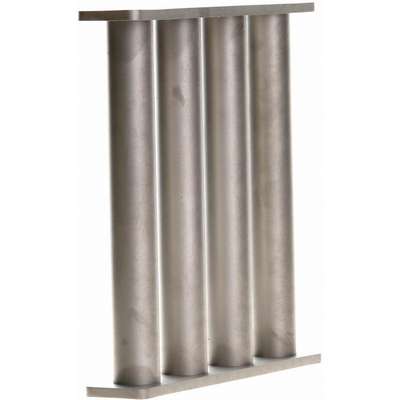

Grate Magnet, Rare Earth, 8" Overall Length, 80 oz Maximum Magnetic Pull Strength

Hover over image to magnify
Magntcgrate,Rectnglr,Rareearth,
PI_Asset_1369665
Magntcgrate,Rectnglr,Rareearth,
PI_Asset_1369665

#920380-1 | Pkg Qty: 1

$1,253.89 pkg | $1,253.89 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Package Quantity
1
Height
1-1/2 in.
Primary Magnet Material
Rare Earth
Item
Magnetic Grate
Shipping Weight
10.8 lb.
Length
8 in.
Temperature Range (Deg. F)
Up to 150 deg. F
Maximum Magnetic Full Strength
80 oz.
Type
Rectangular
Mfr. Part Number
34TA29
Width
8 in.
Overall Length
8 in.
General
For Free Flowing Material Type
Dry Granular, Dry Powder
Magnetic Separator Type
Rectangular Grate Magnet
Free Flowing Material
Powder or Granular
Max. Operating Temp.
150°F
Grate Shape
Rectangle
Max. Pull on Contact
80 oz. At The Surface with 1/4" dia. Steel Test Ball
Intensity Range (Gauss)
10,700
Maximum Magnetic Pull Strength
80 oz
Magnet Type
Rare Earth
Temp. Range (F)
0° to 150°
Magnetic Intensity
10,700 gauss

Product Description

These grate magnets are made up of magnetic tubes arranged in a grid pattern and welded into a rectangular or square frame. They drop into openings on steep-sloped hoppers, odd and irregularly shaped hoppers, floor openings, vertical closed chutes, and ducts. Bulk material falls through the grate during conveying, and any ferrous particles and parts that are in the material stick to the face of the magnetic tubes, removing them from the conveyed material. This helps prevent ferrous particles and parts from contaminating bulk products during conveying, getting into machinery downstream and causing damage, and potentially creating a spark that could ignite explosive materials.

Magnetic separators use high-strength magnets to capture and remove ferrous particles and parts (sometimes known as tramp metal) from gravel, sand, powders, pellets, wood chips, food products, and other solid materials in bulk conveying applications. This helps prevent the ferrous particles and parts from contaminating the product, getting into machinery downstream and causing damage, and potentially creating a spark that could ignite explosive materials. Separators commonly use ceramic or rare earth magnets. Ceramic magnets can effectively capture large ferrous contaminants such as nuts, bolts, or staples. Rare earth magnets are capable of capturing fine or weakly magnetic material such as rust or scale.
