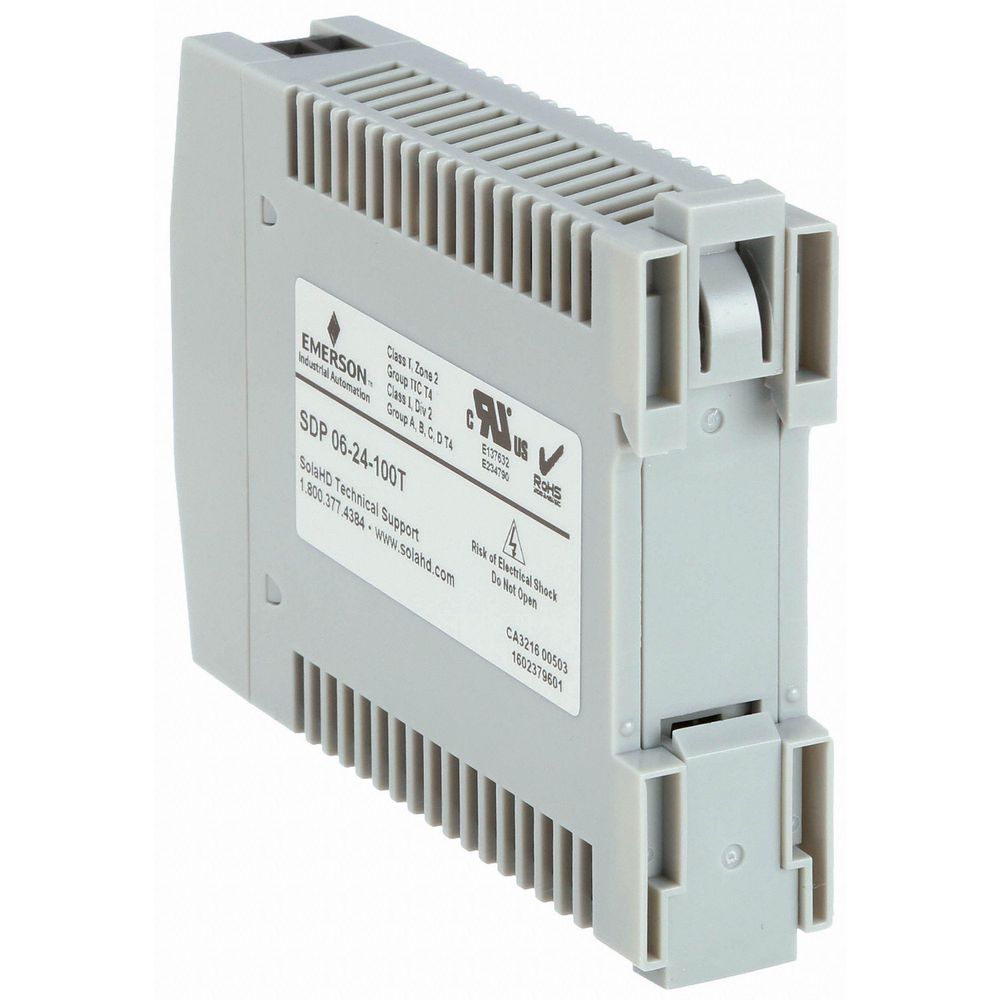

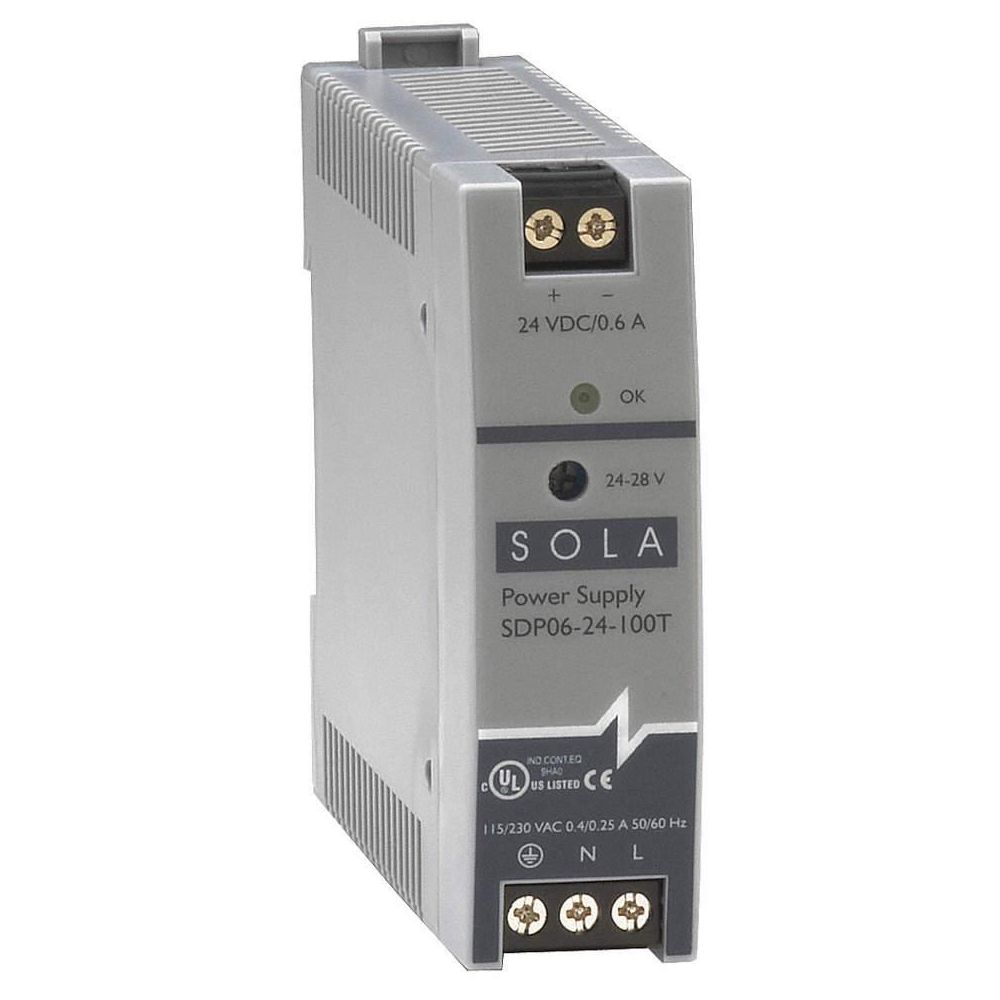

DC Power Supply, Style: Switching, Mounting: DIN Rail

Zoom Icon
Secondary Item Image
4FB82_1

#920334-6 | Pkg Qty: 1

$115.57 pkg | $115.57 ea
Item Number 920334-6
Scanner Description Dc Power Supply,24-28VDC,0.6A,
Inventory Status Drop Ship Item
Weight 0.45 lb
Brand SOLA/HEVI-DUTY

Technical Specifications

Amperage (A)
0.6
NEMA Rating
1
Amps
0.6
Operating Temp Range
-10° to 60°C
Brand
SOLA/HEVI-DUTY
Output Amps
0.6
Case Material
Plastic Case
Output Noise
Less Than 50mV
Depth
3.8 in.
Output Noise (mV)
<lt/>50 p/p
Features
Ultra Slim 15W Footprint, No Tools Required For Mounting, Adjustable Output, Powerboost Industrial Overload Design, Overvoltagea And Short Circuit Protection, Low Output Noise, Screw Terminal Connections
Output Voltage
24 to 28VDC
Height
2.95 in.
Pack Quantity
1
Hold Up Time
Greater Than 25 msec
Phase - Electrical
1
Hz
47 to 63
Power Rating
15W
IP Rating
20
Series
SDP
Input Voltage
85 to 264VAC
Standards
cUL us E61379, cURus E137632 E234790, CE, Class 2 NFPA70
Item
DC Power Supply
Status Indicator
Green DC OK Signal
Mfg Part Number
SDP06-24-100T
Style
Switching
Mounting
DIN Rail
Voltage Output
24-28VDC
Mounting Type
DIN Rail
Width
0.9 in.

Product Description

SDP Series DC Power Supplies (DIN Mounted)

  • Class 2 limited power source Adjustable output voltage Operating temp. range: -10° to 70°C Short-circuit protection Low output noise: 50mV p/p DC OK signal
  • Easy-to-install units provide clean, stable DC power with a special industrial overload design that can start high inrush loads without oversizing. Compact and lightweight, with no derating necessary until above 60°C. DIN rail mount.
  • Meet UL, C-UL, CE, and Class 2 NFPA 70, except No. 1GYK4 meets UL, C-UL, and CE standards.
Item Barcode
9203346
  Name Item Description
Grainger Dropship Grainger Dropship 4FB82 DC Power Supply,24-
UNSPSC CODES UNSPSC CODES 39121002
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 DC Power Supply,24-
