HONEYWELL MICRO SWITCH

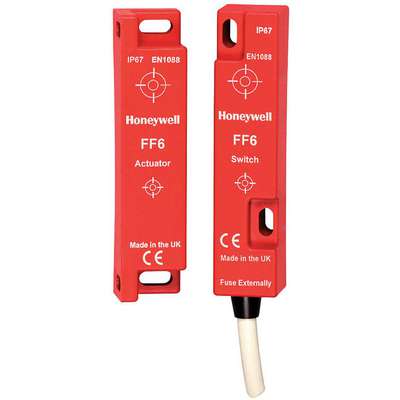

Honeywell Micro Switch 1NO/1NC Magnetically Actuated Safety Interlock Switch, Bare Wire, 9.8 ft. Cable Length
Hover over image to magnify
#920306 | Pkg Qty: 1
$424.47 pkg | $424.47 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
2 A @ 230 V
Item
Magnetically Actuated Safety Interlock Switch
Actuator Depth
3/4 in.
Mfr. Part Number
FF6-11-AC-03
Actuator Height
3.25 in.
Off Sensing Distance
1.18 in.
Amperage
2 A Max
On Sensing Distance
0.40 in.
Body Material
ABS
Operating Temperature Range
1 deg. F to 131 deg. F
Brand
HONEYWELL MICRO SWITCH
Package Quantity
1
Cable Length
9.8 ft.
Series
Ff6
Contact Form
1NO/1NC
Shipping Weight
.7 lb.
Contact Type
1NC/1NO when Actuated
Style
Non-Contact
Depth
3/4 in.
Termination Type
Bare Wire
Description/Special Features
Red ABS Resin Filled; M12 Quick Disconnect, Vibration 50Hz to 100Hz; Shock 10G
Type
Magnetically Actuated w Actuator
Footnotes
External 1.6 Amp Quick Acting Fuse Required for ea. Contact (Customer Supplied)
Voltage
240 VAC
Height
3-1/4 in.
Width
3/4 in.
IP Rating
67
General
Actuator Width
0.75 in
Standards
cULus, CE
Includes
Actuator
Switch Depth
0.75 in
Operating Temp. Range
14° to 131°F
Switch Height
3.25 in
Special Features
Red ABS Resin Filled; M12 Quick Disconnect, Vibration 50Hz to 100Hz; Shock 10G
Switch Width
0.75 in
Product Description
This safety interlock switch features a magnetic actuator. It installs on a machine guard and opens safety contacts while closing auxiliary contacts when the actuator moves out of the operating range.
Item Barcode
Interlock Switch,1NC/1NO,ABS
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 11T824 | Interlock Switch,1NC/ |
 | UNSPSC CODES | 39122213 | |
 | VMRS (ATA) CODES | 053-006-009 | Interlock Switch,1NC/ |
