ARO
Quick Exhaust: Cyl 1/8 in_Exh 1/4 in_Inlet 1/8 in Port Size , 0.195 Coefficient of Volume
Hover over image to magnify
#920283-2 | Pkg Qty: 1
$69.50 pkg | $69.50 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
scfm
Mfr. Part Number
EV125
Brand
ARO
Package Quantity
1
Coefficient of Volume
0.195
Port Size
Inlet 1/8 in., Cyl 1/8 in., Exh 1/4 in.
Item
Quick Exhaust
Shipping Weight
.1 lb.
Maximum Operating PSI
125
Width
1-23/32 in.
General
Air Inlet
1/8 in NPT
Inlet Size
1/8 in
Air Inlet Type
NPT
Maximum Operating Pressure
125 psi
Air Outlet
1/8 in NPT
Maximum Operating Temperature
160 Degrees F
Air Outlet Gender
Female
Minimum Operating Pressure
0 psi
Air Outlet Size
1/8 in
Minimum Operating Temperature
32 Degrees F
Air Outlet Type
NPT
Overall Height
1 1/2 in
Body Material
Aluminum
Overall Length
1 7/16 in
Inlet Gender
Female
Overall Width
1 3/4 in
Product Description

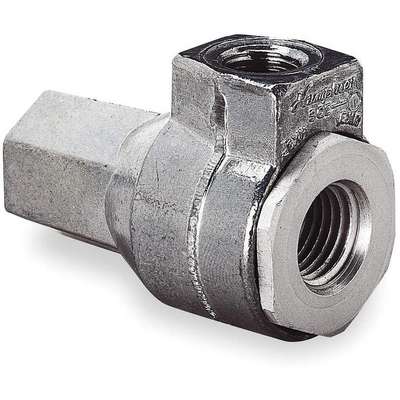

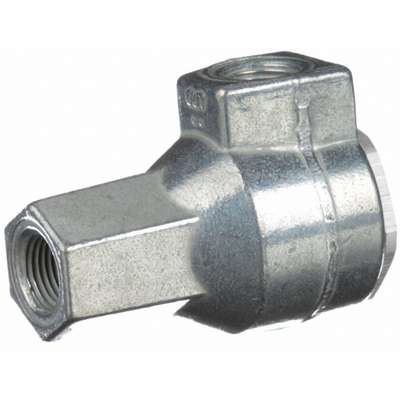

ARO® quick exhaust valve helps increase cylinder speed by providing a quick release of exhausting air. Eliminates the need for large diameter piping or selector valves. Rugged die-cast aluminum body for long life.
