#920255-8 | Pkg Qty: 1
$31.22 pkg
| $31.22 ea
Technical Specifications
Key Specifications
Angle
90 deg.
Maximum Pressure
1000 psi
Body Material
Brass
Mfr. Part Number
VS2202P-12-8
Brand
PARKER
Pack Quantity
1
Connection Type
FNPT x MNPT
Pipe Size
3/4 in. x 1/2 in.
For Use With
Copper, Brass, Iron Pipe
Shipping Weight
0.55 lb.
Includes
Thread Sealant
Standards
SAE J530 and J531
Item
Extruded Street Elbow
Temperature Range (Deg. F)
-65 to 250 deg. F
Length
2 in.
General
Class/Pressure
1,000 psi
Includes Seal
No
Fitting Pipe Size
3/4 in x 1/2 in
Low Lead Compliance Level
Not Compliant
Fitting Side A Gender
Female
Material Grade
C37700
Fitting Side A Nominal Pipe Size
3/4 in
Max. Steam Pressure
1,000 psi
Fitting Side A Type
NPT
Pipe Fitting Material & Finish
Brass
Fitting Side B Gender
Male
Pressure Level
High Pressure (1000-3000 psi)
Fitting Side B Nominal Pipe Size
1/2 in
Thread Sealant Type
Vibra-Seal(R)
Fitting Side B Type
NPT
Threading
NPT
Includes Pre-Applied Thread Sealant
Yes

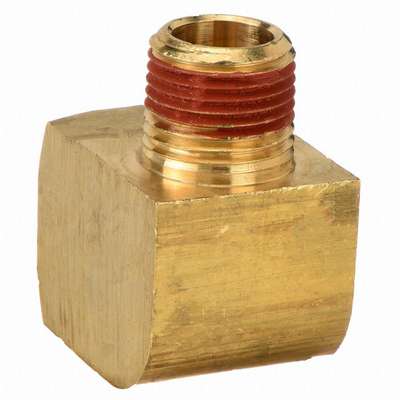

Product Description
Featuring high-impact strength and resistance to mechanical shock and vibration, this PARKER extruded street elbow can be used with brass, copper, and iron tubing. Fitting is for use in aggressive and general industrial environments and is compatible with many fluids. Male threads include Loctite® Vibra-Seal® thread sealant.
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Extruded Street Elbow,90 Deg,
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 13Y845 | Extruded Street Elbow, |
|
UNSPSC CODES | 40172801 | |
|
VMRS (ATA) CODES | 053-008-004 | Extruded Street Elbow, |
