HUBBELLOCK

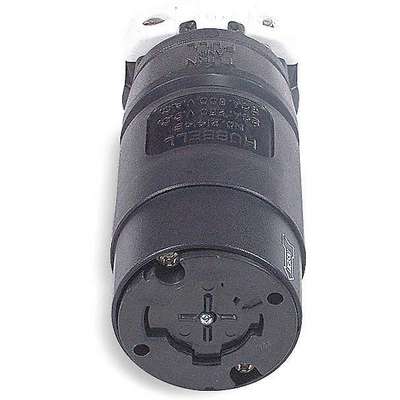

Hubbellock 30/20 Amp Industrial Grade Locking Connector, Non-NEMA, 30A NEMA Configuration, Black
Hover over image to magnify
#920191 | Pkg Qty: 1
$330.90 pkg | $330.90 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
20/30 A
Maximum Wire Size
6 AWG
Amps
30/20 A
Mfr. Part Number
HBL21414B
Antimicrobial
No
Midget Locking
No
Brand
HUBBELLOCK
Minimum Operating Temperature
-40 °C
Cap Type
No Cap or Cover
Minimum Wire Size
10 AWG
Color Family
Black
NEMA Plug Configuration
30A, Non-NEMA
Connection Orientation
Straight
NEMA Receptacle Configuration
Non-NEMA
Contact Material
Bronze
Number of Poles
3
Cord Size
0.630 in to 1.200 in
Number of Wires
4
Corrosion Resistant
No
Outside Diameter
2.438 in.
Current Rating
20/30 A
Overall Length
6 in.
Description
Insulgrip, Grounding, Standard, Non-NEMA
Package Quantity
1
For Environment
Dry
Phase
Three
For Location
Indoor
Power Indicating Light
No
For Maximum Cable Diameter
1.2 in.
Power Indicator
No
For Minimum Cable Diameter
0.7 in.
Shipping Weight
1 lb.
Grade
Industrial/Commercial
Shrouded
No
Grounding
Grounded
Standards
CSA Certified C22.2 No. 42, UL 498
Housing Material
Nylon
Subcategory
Connectors
IP Rating
IP30
UL 94 Flammability Rating
V-0
Item
Locking Connector
Voltage
600VAC/250VDC
Material
Nylon
Voltage Rating
250V DC/600V AC
Material of Construction
Nylon
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
General
Amps - Plugs and Receptacles
30/20
NEMA Plug Configuration - Plugs and Receptacles
30A, Non-NEMA
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
600V AC/250V DC
Product Description
Designed for use with the Hubbellock® device, this industrial Hubbellock connector body features a spring-loaded safety shutter to eject the plug if it is not properly locked in.
Expertly Selected Product Pairings
Item Barcode
Locking Connector,20A@250V/
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5C993 | Locking Connector, |
 | UNSPSC CODES | 39121421 | |
 | VMRS (ATA) CODES | 053-006-009 | Locking Connector, |
