SQUARE D

Square D Bolt On Circuit Breaker, 100 Amps, Number of Poles: 2, 240VAC AC Voltage Rating

Hover over image to magnify

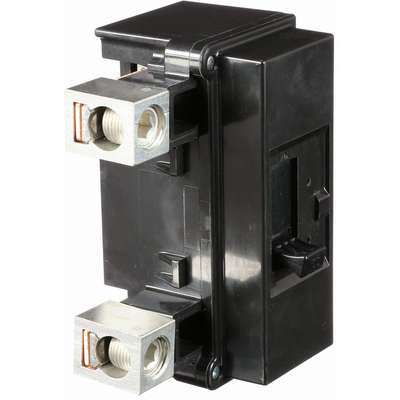

Bolt On Circuit Breaker,100A,2
PI_Asset_1370599
Bolt On Circuit Breaker,100A,2
PI_Asset_1370599

#920190-8 | Pkg Qty: 1

$451.50 pkg | $451.50 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Voltage Rating
120/240VAC
Instantaneous Trip
Fixed
Air @ 120 VAC
22kA
Item
Miniature Circuit Breaker
Air @ 125 VDC
Not Rated
Length
5.6 in.
Air @ 240 VAC
22kA
Maximum Air Rating
22kA at 120/240VAC
Air @ 277 VAC
Not Rated
Maximum Wire Size
300 MCM
Air @ 48 VDC
Not Rated
Mfr. Part Number
QOM2100VH
Air @ 480 VAC
Not Rated
Minimum Wire Size
4 AWG
Air @ 600 VAC
Not Rated
Number of Poles
2
Air @ 65 VDC
Not Rated
Package Quantity
1
Amperage
100 A
Panelboard Mounting
Bolt-On
Amps
100 A
Phase
Single
Brand
SQUARE D
Phase Connection
All
Circuit Breaker Type
Main Breaker
Series
QOM
DC Voltage Rating
Not Rated
Shipping Weight
2.65 lb.
Depth
5.07 in.
Terminal Connection
Lug
For Use With
Homeline Load Center, QO Load Center
Type
Panelboard Mount
Frame Size
100A/QO
Voltage
120 - 240VAC
High Amp Trip Setting
135 A
Width
3.6 in.
General
AIR @ 120VAC
22kA
Compatible Panelboard/Load Center Series
QO
AIR @ 240VAC
22kA
Max. Operating Temp.
104°F
Circuit Breaker Actuator
Paddle
Min. Operating Temp.
104°F
Circuit Breaker Mounting Style
Bolt On
Standards
CSA Certified

Product Description

These QOM series main circuit breakers interrupt overcurrents and short circuits to protect QO load centers with convertible mains from electrical damage. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center. They also have a horizontal handle to allow for top or bottom feed applications.
