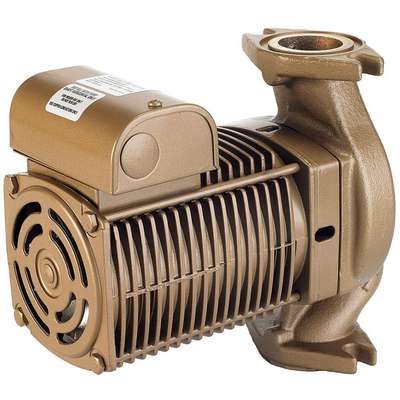

Potable Water Circulating Pump: Standard, Armstrong, Flanged, 2/5 HP, 120V AC, 36 ft Max. Head
Hover over image to magnify
#920183-2 | Pkg Qty: 1
$3,677.45 pkg
| $3,677.45 ea
Technical Specifications
Key Specifications
Amps
5
Maximum GPM @ Head
76 gpm @ 5 ft.
Best Efficiency GPM @ Head
42 gpm @ 25 ft.
Maximum Head
35 ft.
Brand
ARMSTRONG PUMPS INC.
Maximum Operating Pressure
150 psi
Compliance
cUL, Low Lead, NSF-372
Mechanical Seal
Silicon Carbide Enviroseal Coupled with Viton® Elastomer
Connection Style
Flange
Mfr. Part Number
182212-652
Drive Type
Direct
Minimum GPM @ Head
0 gpm @ 35 ft.
Face to Face Dimension
8-1/2 in.
Number of Speeds
1
Features
Ball Bearing, in. Line, Mechanical Seal
Pack Quantity
1
Flange/Union Included
No
Phase
1
HVAC Circulating Pump Type
Hot Water Circulating Pump
Pump Mount
In Line
Height
8-1/2 in.
Pump Type
In Line Centrifugal
Horsepower
2/5
RPM
3400 RPM
Housing Material
Lead Free Bronze
Series
E23.2
Impeller Material
30% Glass-Filled Noryl
Shaft Material
Stainless Steel
Includes
(2) Gaskets, Nuts and Bolts
Shipping Weight
23-1/2 lb.
Inlet/Outlet Size
1-1/2 in.
Shut-Off
35 ft.
Item
Hot Water Circulating Pump
Standards
UL
Length
10-1/4 in.
Thermal Protection
Yes
Loop Configuration
Open
Voltage
115 VAC
Manufacturers Warranty Length
3 yr.
Width
4-1/4 in.
General
Body Gasket Material
EPDM
Maximum Flow Rate @ 20 Feet of Head
54 gpm
Brand and Connection Combo
ARMSTRONG PUMPS INC. , Flange
Maximum Flow Rate @ 25 Feet of Head
42 gpm
Brand and Connection Combo Broad
Armstrong, Flanged
Maximum Flow Rate @ 30 Feet of Head
30 gpm
Compatible Intake Pipe Size
1 1/2 in
Maximum Flow Rate @ 5 Feet of Head
76 gpm
Compatible Media Type
Water
Maximum Media Temperature
230 Degrees F
Flange or Union Included
Yes
Minimum Media Temperature
39 Degrees F
For Use With Potable Systems
Yes
Mounting Location
In-Line
Manufacturer Warranty Length
3 yr
Nameplate Voltage
120V AC
Maximum Feet of Head
36 ft
Number of Flange Mounting Holes
2
Maximum Flow Rate @ 1 Feet of Head
82 gpm
Phase and Brand
ARMSTRONG PUMPS INC. Single Phase
Maximum Flow Rate @ 10 Feet of Head
72 gpm
Pump Housing Material
Bronze
Maximum Flow Rate @ 15 Feet of Head
64 gpm
Series Family
E.2
Product Description
The hot water circulating pump was designed to pump glycol and water solutions up to 50% in domestic and light commercial closed loop hydronic heating systems. Flanges not included.
