DUCTMATE

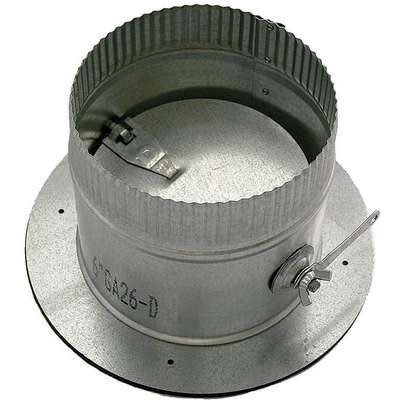

Ductmate Galvanized Steel Collar W/Damper, 8" Duct Fitting Diameter, 5" Duct Fitting Length

Hover over image to magnify
8 In Dia,24 Ga,Self Seal
PI_Asset_967345
8 In Dia,24 Ga,Self Seal
PI_Asset_967345

#920144-6 | Pkg Qty: 1

$36.32 pkg | $36.32 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
DUCTMATE
Material
Galvanized Steel
Diameter
8 in.
Mfr. Part Number
GR6POCR8GA24D
Height
6 in.
Package Quantity
1
Item
Collar W/Damper
Shipping Weight
1.8 lb.
Length
5 in.
Width
11 in.
General
Coating
Galvanized
For Use With
Greenseam Duct system
Duct Fitting Diameter
8 in
Pressure Rating
3 in W.G
Duct Fitting Length
5 in
Special Features
Pre-sealed / Low Leakage Hardware
Duct Fitting Material
Galvanized Steel
Standards
SMACNA / ASTM

Product Description

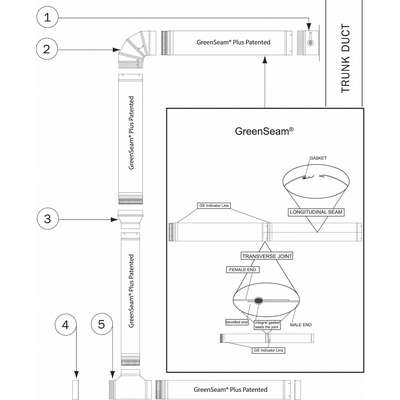

For use with GreenSeam+™ snap pipe (sold separately), a self-sealing duct for commercial and residential applications. Pipe is engineered with a LEED® qualifying zero-VOC gasket; eliminates additional sealing along the longitudinal seams and transverse joint. When fitting is used with GreenSeam® pipe, the design can reduce energy costs and increase overall system efficiency.
