GROZ

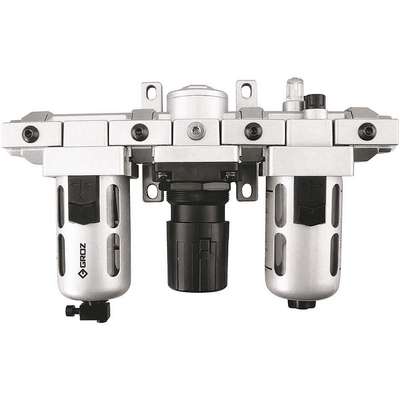

Filter/Regulator/Lubricator, 3/8" NPT, 7 to 145 psi Adjustment Range - Air Treatment
Hover over image to magnify
#920135-9 | Pkg Qty: 1
$199.00 pkg | $199.00 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
scfm
Mfr. Part Number
7DX46
Bowl Material
Polycarbonate with Guard
Number of Pieces
7
Brand
GROZ
Overall Height
8.66 in.
Drain Type
Semi Automatic
Overall Width
9.84 in.
Filter Rating
40 micron
Package Quantity
1
Item
Filter/Regulator/Lubricator
Pipe Size
3/8 in. NPT
Maximum Flow
71 cfm
Product Size
Intermediate
Maximum Pressure
145 psi
Replaces
Dynaflo 0425946, Jupiter 42007542
Maximum Temperature
140 deg. F
Shipping Weight
3.39 lb.
General
Adjustment Range - Air Treatment
7 to 145 psi
Filter Rating - Air Treatment
40 micron
Air Inlet Type
NPT
Includes
(1) 36JN50 Compressed Air Filter, (1) 36JN43 Air Regulator, (1) 36JN58 Modular Air Line Lubricator, (2) 36JP05 Mounting Clamp, (2) 36JN97 Pipe Adapter
Bowl Material - Air Treatment
Polycarbonate with Guard
Max. Flow - Air Treatment
71 cfm
Bowl Size - Air Treatment
1.0 oz
Max. Flow Range - Air Treatment
71 to 100 cfm
Connection Size - Air Treatment
3/8 in NPT
Max. Incoming Pressure - Air Treatment
145 psi
Filter Bowl Capacity
1 oz
Number of Pieces - Air Treatment
3
Filter Bowl Guard Included
Yes
Size - Air Treatment
Intermediate
Filter Bowl Material
Plastic
System Location
Air Line
Product Description
Features built-in piping adapters that allow you to easily remove/mount individual components without disturbing the air line.
Item Barcode
Filter/Regulator/Lubricator,3/
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 7DX46 | Filter/ Regulator/ |
 | UNSPSC CODES | 27131603 | |
 | VMRS (ATA) CODES | 053-008-004 | Filter/ Regulator/ |
