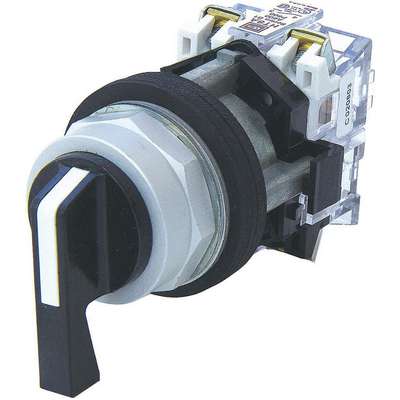

Non-Illuminated Selector Switch, Size: 30mm, Position: 3, Action: Maintained / Maintained / Maintain

Non-Illuminated Selector Switch, Size: 30mm, Position: 3, Action: Maintained / Maintained / Maintain

#920020-5 | Pkg Qty: 1

$92.34 pkg | $92.34 ea
Item Number 920020-5
Scanner Description Non-Illum Selectr Swtch,30mm,3
Inventory Status Drop Ship Item
Weight 0.51 lb
Brand EATON

Technical Specifications

Action
Maintained / Maintained / Maintained
Mfr. Part Number
HT8JEH1DF1Q1
Basic Material
Metal
NEMA Contact Rating Designation
A600/P600
Bezel
Anodized Aluminum/Mounting Rings
NEMA Rating
1, 2, 3, 4, 4X, 12, 13
Bezel Color
Black
Number of Directions
3
Bezel Material
Anodized Aluminum
Operation Type
Maintained
Brand
EATON
Operator Head Material
Dielectric Polymer
Cam
1D
Pack Quantity
1
Color Family
Black
Position
3
Contact Form
2NO/2NC
Product Size
30mm
Contact Rating
10A @ 600VAC
Standards
UL Listed, CSA Certified
Contact Type
2NO-2NC
Switch Operation @ Position A
XOO
IP Rating
68
Switch Operation @ Position B
OXO
Includes
Assembled Pushbutton
Switch Operation @ Position C
OOX
Item
Non-Illuminated Selector Switch
Switch Operation @ Position D
No Fourth Position
Key Removal
No Key
Type
Non-Illuminated
Lever
Lever
Type of Operator
Lever
Material of Construction
Anodized Aluminum/Mounting Rings
Voltage
600 VAC

Product Description

This non-illuminated selector switch is engineered to protect against the ingress of solid foreign objects such as falling dirt, circulating dust, settling dust, lint, fibers, and flyings. It also offers protection against the ingress of water from dripping, splashing, and hosedowns. The switch also resists corrosive agents, spraying or seepage of oil and coolants, and damage from the external formation of ice on the enclosure.

Item Barcode
9200205
  Name Item Description
Grainger Dropship Grainger Dropship 12Y230 Non-Illum Selectr
UNSPSC CODES UNSPSC CODES 39121513
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Non-Illum Selectr
