IDEAL

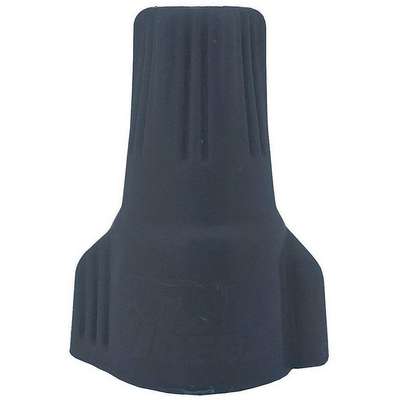

Ideal Twist On Wire Connector, Application Wide Range, Wire Connector Style Wing, Color Gray/Orange

Hover over image to magnify
Twist On Wire Connector,22-14
PI_Asset_972709
PI_Asset_972710
PI_Asset_972711
PI_Asset_972712
Twist On Wire Connector,22-14
PI_Asset_972709
PI_Asset_972710
PI_Asset_972711
PI_Asset_972712
Ideal Twist On Wire Connector, Application Wide Range, Wire Connector Style Wing, Color Gray/Orange Video
Double tap image to magnify

#920013-5Pkg Qty: 25

$32.50 pkg | $1.30 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Application
Wide Range
Mfr. Part Number
30-1161P
Brand
IDEAL
Minimum Single Wire Size
22 AWG
Color Family
Orange / Silver
Minimum Wire Combination
(2) 20 AWG
Connector Type
61
Minimum Wire Size
22 AWG
Description/Special Features
Silicon Based Sealant Protects Against Moisture and Corrosion, Suitable for Interior and Exterior Electrical Connections Exposed to Rain or Damp Conditions
Package Quantity
25
Height
0.91 in.
Series
61
Item
Twist On Wire Connector
Shipping Weight
.1 lb.
Length
0.65 in.
Type
Twist-On
Maximum Single Wire Size
14 AWG
Width
0.66 in.
Maximum Voltage
600 VAC
Wire Connector Style
Wing
Maximum Wire Combination
(2) 14 AWG
Wire Type
Copper
Maximum Wire Size
14 AWG
General
For Conductor Material
Copper
Strip Length
3/8 in
For Wire Size
14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG
Twist-On Wire Size Ranges
22 AWG – 14 AWG
Maximum Conductors
4
UL 94 Flammability Rating
V-2
Special Features
Silicon Based Sealant Protects Against Moisture and Corrosion, Suitable for Interior and Exterior Electrical Connections Exposed to Rain or Damp Conditions

Product Description

Twist on wire connectors are used in low-voltage applications where is necessary to fasten multiple conductors together.
