LEGRIS

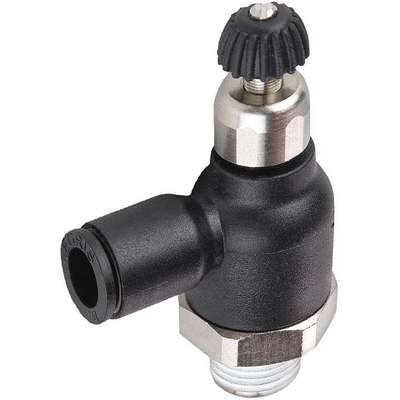

Flow Control Valve, 1/4" Push To Connect Valve Inlet Port, 145 psi, Directions Controlled : 1
Hover over image to magnify
#920011-1 | Pkg Qty: 1
$29.48 pkg | $29.48 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
scfm
Package Quantity
1
Brand
LEGRIS
Pipe Size
1/8 in.
Connection
MNPT x Tube
Pressure Range
14.5 to 145 PSI
Directions Controlled
1
Shipping Weight
.45 lb.
Hex Size
10 mm
Tube Size
1/4 in.
Item
Flow Control Valve
Type
Compact
Material of Construction
Glass Filled Nylon And Nickel Plated Brass
Valve Inlet Port
1/4 in. Push To Connect
Maximum Temperature
158 deg. F
Valve Maximum Pressure Rating
145 psi
Mfr. Part Number
7065 56 11
Valve Outlet Port
1/8 in. NPT
General
Metal Detectable
No
Pneumatic Valves Product Group
Flow Control Valve
Product Description
Function Fittings
- Metric valves have BSPP threads Compact push-to-connect valves include both an internal and external hex for easy, tool-free tightening and assembly. Nylon and nickel-plated brass construction, except where noted. Polypropylene push button and Buna nitrile elastomer seals for leak-free connections. For use with polyurethane, polyethylene, or PTFE tubing. Flow Controls Compact
- Temp. range: 32° to 158°F Adjustment screw controls airflow, while locking nut protects the flow setting from being changed due to tampering or vibration.
Expertly Selected Product Pairings
Documents
Item Barcode
Flowcntrl Regulator,Comp,1/4",
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1PFY1 | FlowCntrl Regulator, |
 | UNSPSC CODES | 40141609 | |
 | VMRS (ATA) CODES | 053-006-009 | FlowCntrl Regulator, |
