LEGRIS

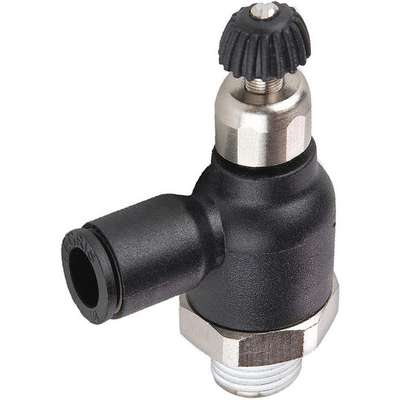

Flow Control Valve, 10 mm Push To Connect Valve Inlet Port, 145 PSI, Directions Controlled : 1
Hover over image to magnify
#920011 | Pkg Qty: 1
$56.30 pkg | $56.30 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
scfm
Package Quantity
1
Brand
LEGRIS
Pipe Size
3/8 in.
Connection
BSPP x Tube
Pressure Range
14.5 to 145 PSI
Directions Controlled
1
Shipping Weight
.65 lb.
Hex Size
23 mm
Tube Size
10 mm
Item
Flow Control Valve
Type
Compact
Material of Construction
Glass Filled Nylon And Nickel Plated Brass
Valve Inlet Port
10mm Push To Connect
Maximum Temperature
158 deg. F
Valve Maximum Pressure Rating
145 psi
Mfr. Part Number
7060 10 17
Valve Outlet Port
3/8 in. BSPT
General
Metal Detectable
No
Pneumatic Valves Product Group
Flow Control Valve
Product Description
Legris® flow control regulator is specially designed for use with small-bore cylinders in very small pneumatic applications. Glass filled nylon and nickel plated brass construction. For use with polyurethane, polyethylene, or PTFE tubing.
Expertly Selected Product Pairings
Documents
Item Barcode
Flow Control Regulator,10mm Od
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1PFX7 | Flow Control Regulator, |
 | UNSPSC CODES | 40141609 | |
 | VMRS (ATA) CODES | 053-006-009 | Flow Control Regulator, |
