HUBBELL WIRING DEVICE-KELLEMS

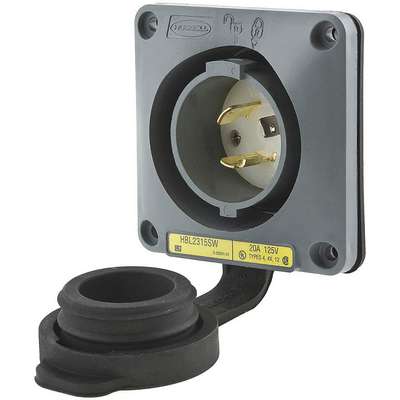

Hubbell Wiring Device-Kellems Gray Watertight Flanged Locking Inlet, 20 Amps, 125 VAC Voltage, NEMA Configuration: L5-20P

Hover over image to magnify
Wtertght Flanged Lcking Inlet,
PI_Asset_1983939
Wtertght Flanged Lcking Inlet,
PI_Asset_1983939

#919955-5 | Pkg Qty: 1

$91.92 pkg | $91.92 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amperage
20 A
Minimum Wire Size
16 AWG
Amps
20 A
Mount Type
Flush
Blade Material
Brass
Mounting Type
Flush Mount
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Configuration - Plugs & Connectors
L5-20
Color Family
Gray
NEMA Enclosure Rating
12, 4, 4X
Current Rating
20 A
NEMA Plug Configuration
L5-20P
Flange Height
3-3/4 in.
NEMA Rating
12, 4, 4X
Flange Material
PBT
Number of Blades
3
Flange Type
Flanged
Number of Poles
2
Grade
General Use
Number of Wires
3
Grounding
Grounded
Overall Depth
2.267 in.
HP
1 HP
Package Quantity
1
Horsepower
1 hp
Phase
Single
Housing Color
Gray
Shipping Weight
.7 lb.
Housing Material
Valox
Shrouded
Yes
IP Rating
IP66
Special Features
With Locking Cover
Includes
Closure Cap
Standards
CSA Type 4, 4X and Type 12, UL Listed
Item
Watertight Flanged Locking Inlet
Subcategory
Inlets
Material
Nylon
UL 94 Flammability Rating
V-0
Material of Construction
Thermoplastic Polyester
Voltage
125V AC
Maximum Operating Temperature
75 °C
Voltage Rating
125V AC
Maximum Wire Size
8 AWG
Wire Connection Type
Screw Terminals
Mfr. Part Number
HBL2315SW
Wiring Style
Standard
Minimum Operating Temperature
-40 °C
General
HP
1.0
Special Features
With Locking Cover

Product Description

Help prevent water ingress in electrical connections under hose-down conditions with a watertight, safety-shroud twist-lock. It features stainless steel hardware, a closure cap, 1-pc. thermoplastic housing, and lockout-tagout hole.
