WALTER

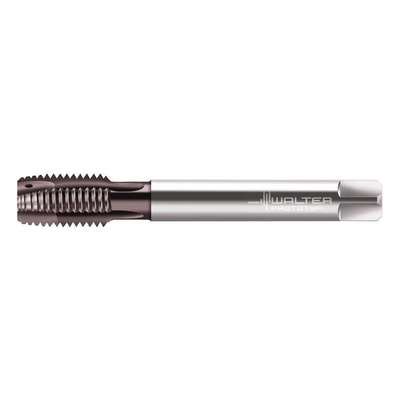

Spiral Point Tap, Thread Size M20x1.5, Metric Fine, Overall Length 125.00 mm, High Speed Steel

Hover over image to magnify
Machine Tap,Taper,M20x1.50,Thl,
Machine Tap,Taper,M20x1.50,Thl,

#919930-9 | Pkg Qty: 1

$363.68 pkg | $363.68 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
WALTER
Spiral Direction
Neutral
Cutting Direction
Right
Square Size
12 mm
Item
Spiral Point Tap
Subgroup | Tap
Spiral Point
Material
High Speed Steel
Tap Chamfer
Plug
Mfr. Part Number
EP2126342-M20X1.5
Tap Dimension Type
Metric
Number of Flutes
4
Tap Finish
THL
Number of Pieces
1
Tap Material
High Speed Steel
Overall Length
125 mm
Tap Size
M20
Package Quantity
1
Tap Style
Straight Flute (Hand)
Pitch
1.50 mm
Tap Thread Size
M20x1.50
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Tap Thread Type
Metric Fine
Series
Prototex Eco Plus
Thread Direction
Right Hand
Shank Diameter
16.00 mm
Thread Length
24 mm
Shank Length
45 mm
Thread Type
Metric Fine
Shipping Weight
.49 lb.
General
55% Thread Drill Size
18.90 mm
Shank Dia.
16.00 mm
65% Thread Drill Size
18.75 mm
Shank Type - Machining
Straight
75% Thread Drill Size
18.50 mm
Tap Grouping
Individual
Coolant Fed
Coolant Through
Thread Limit
6HX
Extended Neck
Yes
Thread Limit / Class of Fit
6HX
Measurement System
Metric
Thread Pitch
1.50 mm
Primary Material Application ISO Code
K, M, N, P
Thread Standard
Metric Fine

Product Description

The THL coating on these taps protects them from wear and provides better chip formation than TiN and TiCN coatings. THL-coated taps are suitable for threading high-speed steel, cast iron, and aluminum alloys, and they can be used with or without coolant. Coolant-through taps have holes that allow coolant to flow to their tip to reduce heat and friction during threading tasks.
