SPEEDAIRE

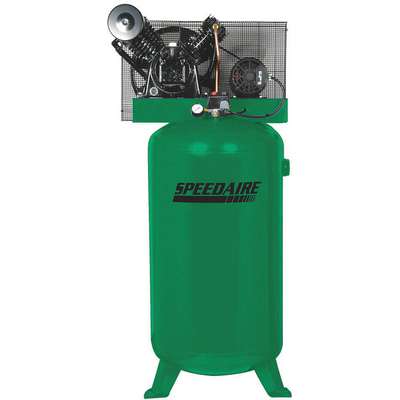

3 Phase - Electrical Vertical Tank Mounted 5.00HP - Air Compressor Stationary Air Compressor, 80 gal

Hover over image to magnify
Elec. Air Compressor,General
Elec. Air Compressor,General

#919924-8 | Pkg Qty: 1

$2,492.11 pkg | $2,492.11 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
(F)NPT Outlet
3/4 in.
Maximum Pressure
175 psi
Air Consumption
scfm
Mfr. Part Number
35WC83
Amperage
14.2-12.8 A
Number of Stages
2
Brand
SPEEDAIRE
Overall Height
71 in.
Compressor Package Type
Base Model
Overall Length
35 in.
Compressor Type
Tank Mounted
Overall Width
27 in.
Control
Pressure Switch
Package Quantity
1
Cylinder Material
Cast Iron
Phase
3
Enclosure
Open Drip Proof
Pump Location
Tank Mounted
Finish
Powder Coated
Pump RPM
1190
Free Air CFM @ Max Pressure
14
Shipping Weight
458 lb.
Horsepower
5
Tank Size
80 gal.
Hz
60
Tank Style
Vertical
Input Voltage
208 to 240 VAC
Tank Type
Vertical
Item
Electric Air Compressor
Voltage
208-230
Lubrication Type
Splash Lubricated
General
ASME Tank
Yes
Number of Stages - Air Compressor
2
Air Tank Size
80 gal
Off Pressure Switch Setting
175 psi
Air Tank Style
Vertical
On Pressure Switch Setting
145 psi
Compressor Voltage
208-230V AC
Outlet Gender
Female
Free Air CFM @ Max. Pressure - Air Compressor
14.0
Output Power
5 hp
Free Air Flow Rate @ Max Pressure
13.7 cfm
Phase - Electrical
3
Free Air Flow Rate @ Maximum Pressure
13.7 cfm
Pump Location - Air Compressor
Tank Mounted
HP
5
Pump Oil Capacity
17 fl oz
HP - Air Compressor
5.0 hp
Sound Level Range
Standard (70 dBA or more)
Includes
Manual Drain Valve, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve
Standards
ASME, UL/CSA, California Code 462(L)(2), UL1450
Input Voltage - Air Compressor
208 to 230V AC
Style - Air Compressor
Simplex
Life Expectancy
12,000 hr
Tank Size - Air Compressor
80 gal
Lubrication Type - Air compressor
Splash Lubricated
Tank Style - Air Compressor
Vertical
Max Operating Pressure
175 psi
dBA @ 3 Feet
83
Max. Pressure - Air Compressor
175 psi

Product Description

Delivers higher pressure than 1-stage models with low RPM for long life. Features a totally enclosed, safety-designed belt guard.

  • Expected pump life: 12,000 hr. ▪ 100% duty cycle (with use of synthetic oil) ▪ Must be hardwired
