DORIAN

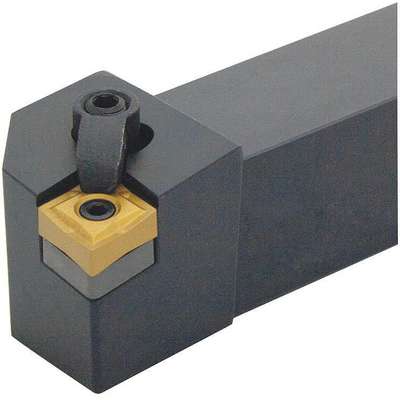

Indexable Turning Toolholder, MCLN, Insert Style CNM., Overall Length 5 in
#919919-2 | Pkg Qty: 1
$91.29 pkg | $91.29 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
ANSI Code
MCLNR164C
Mfr. Part Number
73310150124
ANSI Number
MCLNR16-4C
Mounting Style
Multi-Lock
Brand
DORIAN
Overall Length
5.0 in.
Clamp
CL-20
Package Quantity
1
Clamp Screw
XNS-48
Rake
Negative
Cutting Direction
Right
Rake Angle
7°
Head Length
1-1/4 in.
Shank
Square
ISO Number
MCLNR164C
Shank Height
1.000 in.
Inscribed Circle
0.500 in.
Shank Material
Alloy Steel
Insert Screw
NL-46
Shank Width
1.000 in.
Insert Shape
80° Diamond
Shim
ICSN-433
Insert Size
432
Shipping Weight
1.5 lb.
Insert Style
CNM.
Style
MCLNR16-4C
Item
Indexable Turning Toolholder
Type
CNMG Holder
Lead Angle
Negative 5°
General
Cutting Application
Turning
Insert Holding Type
Clamp and Lock Pin
Cutting Height
1 in
Insert Inscribed Circle
1/2 in
Features
Hardened to 44 HRC
Side Cutting Edge Angle
-5 Degrees
Insert Clearance Angle
0 Degrees
Toolholder Style
MCLN
Product Description
Indexable Turning Toolholder, MCLN, Insert Style CNM., Overall Length 5 in
Item Barcode
Turning Toolholder,Cnmg,
Name | Item | Description | |
---|---|---|---|
Grainger Dropship | 41T636 | Turning Toolholder, | |
UNSPSC CODES | 23242106 | ||
VMRS (ATA) CODES | 053-006-009 | Turning Toolholder, |
