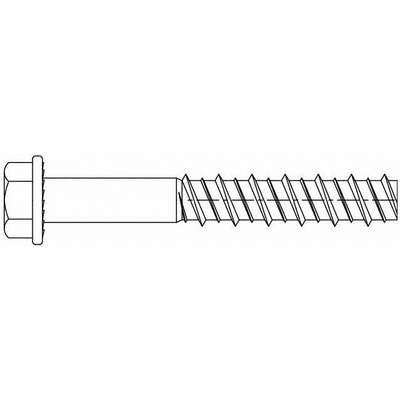

Hex Washer Screw Anchor, 1/2" Dia. x 4", Steel, Mechanically Plated Fastener Finish
Hover over image to magnify
#919900-4 | Pkg Qty: 25
$103.25 pkg | $4.13 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Anchor Diameter
1/2 in.
Material Grade/Class
18-8
Anchor Length
4 in.
Maximum Work Thickness
1-1/2 in.
Anchor Material
Steel
Mfr. Part Number
LDT-1240
Anchor Screw Head Style
Hex Washer
Minimum Embedment
2 in.
Anchor Screw Type
Screw Anchor
Package Quantity
25
Brand
RED HEAD
Seismic Approved
No
Drill Bit Size
7/16 in.
Shipping Weight
5.75 lb.
Fastener Finish
Blue Climaseal
Type
Self Threading
ICC Approved for Cracked Concrete
No
Ultimate Shear
8140 lb.
ICC Approved for Un-Cracked Concrete
Yes
Ultimate Tension
8836 lb.
Item
Screw Anchor
General
Ultimate Shear (Lb.)
8,140 lb
Ultimate Tension (Lbs.)
8,836 lb
Product Description
Large-Diameter Tapcon® Self-Threading Anchors
- Grade 5 zinc-plated, hardened steel
- Removable structural screw anchors are for high-load capacity applications. Use in concrete and masonry and in dry, noncorrosive environments. Install with standard masonry drill bits.
