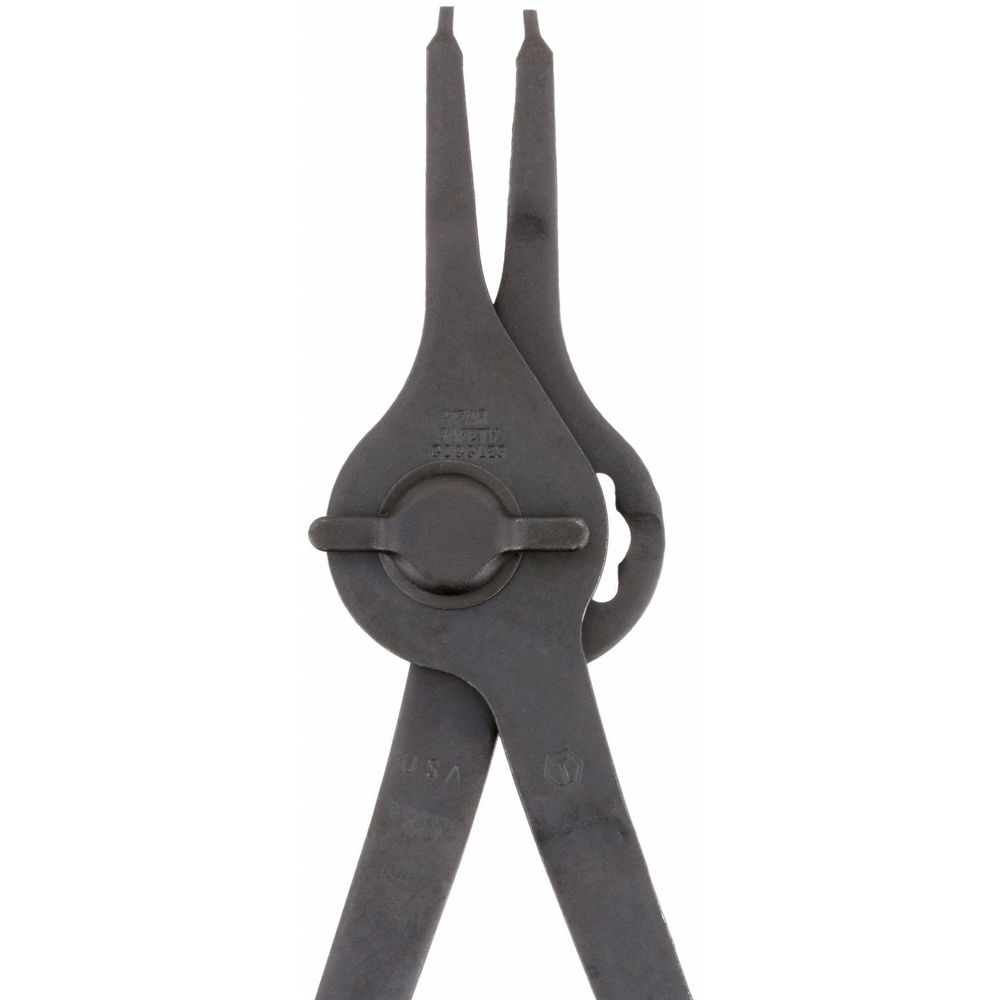

Proto Convertible Retaining Ring Pliers, For Bore Dia.: 1-13/16" to 3", Tip Angle: 0°, Tip Dia.: 0.090

Hover over image to magnify
Retaining Ring Pliers,0.090 In
Retaining Ring Pliers,0.090 In
Proto Convertible Retaining Ring Pliers, For Bore Dia.: 1-13/16" to 3", Tip Angle: 0°, Tip Dia.: 0.090 Video

#919729-6 | Pkg Qty: 1

$42.40 pkg | $42.40 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
PROTO
Material
Carbon Steel
For Bore Diameter Range
1-13/16 in. to 3 in.
Mfr. Part Number
J377
For Shaft Diameter Range
1-1/2 in. to 3-1/2 in.
Number of Pieces
1
Grip Style
Plastic Dipped
Package Quantity
1
Handle Color
Red
Shipping Weight
.55 lb.
Handle Style
Cushion Grip
Tip Diameter
0.09 in.
Item
Retaining Ring Plier
Tip Type
Fixed
General
Conversion Mechanism
Pivot Screw
For Shaft Diameter Range
1 1/2 in to 3 1/2 in
Features
Precision Ground Tips
Jaw Opening Type
Manual
For Bore Diameter Range
1 13/16 in to 3 in
Plier Material
Steel
For Maximum Bore Diameter
3 in
Plier Type
Retaining Ring Pliers
For Maximum Shaft Diameter
3 1/2 in
Replaceable Tips
No
For Minimum Bore Diameter
1 13/16 in
Standards
Federal Specification GGG-P-480, ANSI B107.19
For Minimum Shaft Diameter
1 1/2 in
Steel Type
Carbon Steel
For Ring Type
External, Internal
Tip Angle
0 Degrees

Product Description

A versatile retaining ring pliers from Proto® for use with either external or internal retaining rings. Pliers convert from internal to external or vice versa by moving pivot screw to adjacent tapped hole. Use the largest diameter tip that will fit the ring being removed or installed. Fixed tips are precision formed and induction hardened for accuracy and long life.
