CAROL

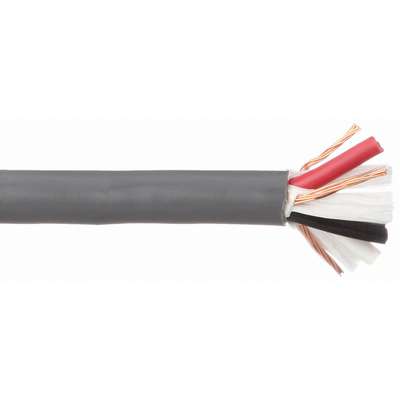

Carol 250 ft. Unshielded Bus Drop Cable with 3 Conductors and 14 AWG Wire Size, Gray

Hover over image to magnify
Bus Drop Cable,14/3,250 Ft.,
PI_Asset_1353557
Bus Drop Cable,14/3,250 Ft.,
PI_Asset_1353557
Carol 250 ft. Unshielded Bus Drop Cable with 3 Conductors and 14 AWG Wire Size, Gray Video

#919685-5 | Pkg Qty: 1

$369.73 pkg | $369.73 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
CAROL
Nominal Outside Diameter
0.400 in.
Cable Type
Bus Drop
Number of Conductors
3
Cable/Wire Type
UL Type TC
Package Quantity
1
Color Family
Gray
Shielded/Unshielded
Unshielded
Conductor
Copper
Shielding
Unshielded
Conductor Material
Copper
Shipping Weight
31.73 lb.
Description/Special Features
One Uninsulated Ground Conductor Per Interstice. Resistant To Oils, Lubricants, Water, Acids, Alkalies, Ozone And Abrasion
Spool Length
250 ft.
Gauge/Conductor
14/3
Spool/Coil Length
250 ft.
Item
Bus Drop Cable
Temperature Range
-4 deg. F to 140 deg. F
Jacket Color
Gray
Type
Bus Drop
Jacket Material
PVC
Voltage
600 V
Jacket Type
PVC
Wire Color
Black, White, Red
Length
250 ft.
Wire Gauge
14 AWG
Maximum Amps
15
Wire Size
14 AWG
Maximum Voltage
600 V
Wire and Cable Item
Bus Drop Cable
Mfr. Part Number
03714.35.10
Wire/Cable Jacket Material
PVC
General
Cable Type - Wire and Cable
UL Type TC
Special Features
One Uninsulated Ground Conductor Per interstice. Resistant to Oils, Lubricants, Water, Acids, Alkalies, Ozone and Abrasion
Features
One Uninsulated Ground Conductor Per interstice. Resistant to Oils, Lubricants, Water, Acids, Alkalies, Ozone and Abrasion
Standards
UL
Jacket Material - Wire and Cable
PVC
Trade Designation
Bus Drop
Shielded / Unshielded
Unshielded
Wire Size - Wire and Cable
14 AWG

Product Description

Bus drop cable is a service cord with multiple insulated conductors that drops down from the ceiling to connect a main power supply to a piece of equipment. It is typically used in manufacturing applications to power stationary equipment or portable equipment and facilitate relocation. It has a durable jacket that is resistant to oil, moisture, and abrasion, so it doesn't need additional protection from conduit or raceways.

Bus drop cable and tray cable are service cords that connect a power supply to a machine or device. They have two or more insulated conductors and a protective jacket that resists abrasion, water, sunlight, and lubricants. Bus drop cable is typically used as a branch connection from a ceiling cable, while tray cable is primarily used for wiring installations in open-air raceways and trays.
