DAYTON

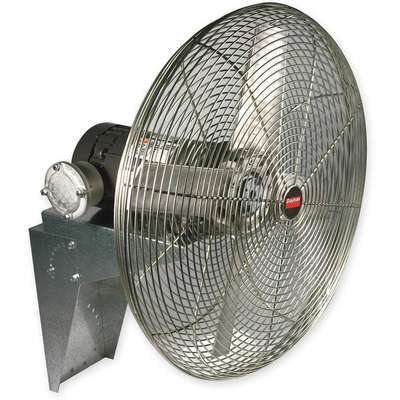

Dayton 24" Hazardous-Location Industrial Fan, Stationary, Wall, 115/230 VAC

Hover over image to magnify
Air Circulator,24 In,5486 Cfm,
Air Circulator,24 In,5486 Cfm,

#919515 | Pkg Qty: 1

$1,490.39 pkg | $1,490.39 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Air Circulator Height
34 in.
Mounting Location
Wall
Assembled/Unassembled
Yes
Number of Blades
4
Blade Diameter
24 in.
Number of Speeds
1
Blade Material
Cast Aluminum
Oscillating
No
Brand
DAYTON
Outside Diameter
27 in.
Item
Air Circulator
Package Quantity
1
Mfr. Part Number
1VCH1
Phase
1
Motor Enclosure
Totally Enclosed Fan Cooled
Shaft Diameter
5/8 in.
Motor HP
1/4
Shipping Weight
66 lb.
Motor Insulation
Class B
Style
Non-oscillating
Motor RPM
1140
Voltage
115/230
Motor Type
Capacitor Start
Width
27 in.
General
Air Velocity @ 10 Ft.
870 fpm
Environmental Applications
Industrial
Air Velocity @ 20 Ft.
520 fpm
Fan Housing Material
Steel
Air Velocity @ 40 Ft.
280 fpm
Fan Mounting Location
Wall
Air Velocity @ 60 Ft.
200 fpm
Includes
Secondary Support Cable, Wall Bracket
Air Velocity @ 80 Ft.
125 fpm
Max. Ambient Temp.
104 Degrees F
Application
Hazardous Location Spot Cooling
Standards
Motors only are (E29183) for Class 1, Div. 1, Group D, and Class II, Div. I, Groups E, F, and G hazardous locations OSHA-compliant zinc-plated wire guards
Assembly Required
No
Wheeled Base
Stationary

Product Description

Hazardous-location industrial wall-mount fans resist sparking to reduce the risk of ignition when cooling areas with flammable or explosive vapors, gases, or dust. They're designated for use in specific hazardous atmospheres as defined under Article 500 of the National Electrical Code (NEC). They can help prevent fires or explosions in chemical-processing plants, refineries, food-production facilities, and other hazardous environments. These air circulators have a totally enclosed motor to keep out dirt and dust.

Industrial wall-mount fans attach to a wall, ceiling, or beam so they won't take up floor space, block traffic flow, or create a tripping hazard. These air circulators are often used for cooling people, machinery, and products in aisles, tight spaces, and busy areas of manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
