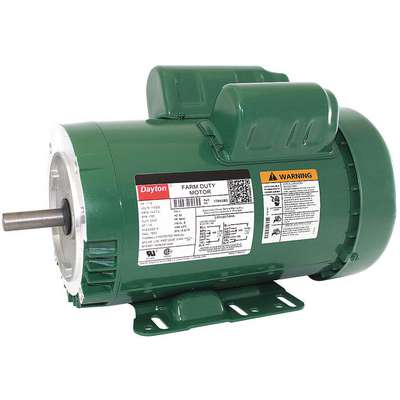

Dayton 1-1/2 HP High Torque Farm Duty Motor,Capacitor-Start/Run,1725 Nameplate RPM,115/230 Voltage
Hover over image to magnify
#919504-9 | Pkg Qty: 1
$676.05 pkg
| $676.05 ea
Technical Specifications
Key Specifications
Agency Compliance
UL Recognized (E47479), CSA Certified (LR44256)
Mounting Position
Horizontal
Bearings
Ball
NEMA/IEC Frame
56HC
Brand
DAYTON
Nameplate RPM
1725
Duty
Continuous
Number of Speeds
1
Duty Cycle
Continuous
Overall Length
13-7/8 in.
Enclosure
Totally Enclosed Fan-Cooled
Pack Quantity
1
Finish
Enamel
Phase
Single
Frame
56HC
Replacement For
4VZ36, 4VZ37
Full Load Amps
14.4/7.2
Rotation
CW/CCW
Hz
60
Service Factor
1.15
Insulation Class
B
Shaft Length
1-7/8 in.
Item
High Torque Farm Duty Motor
Shaft Orientation
Horizontal
Length Less Shaft
12 in.
Shipping Weight
32 lb.
Mfr. Part Number
1TMX2
Thermal Protection
Manual
Motor Design
Capacitor-Start/Run
Voltage
115/230 VAC
Motor Type
Capacitor-Start
Warranty
2ACD1
Mounting
Face/Base
General
Capacitor Required
Included
Motor Mounting Type
Face/Base
Conduit Box
Gasketed
Motor Service Factor
1.15
Fan Blade Material
Plastic
Motor Shaft Design
Keyed
HP
1 1/2
Motor Shaft Rotation
CW/CCW
Includes
Shaft Slinger, Gasketed Conduit Box, Shaft Key, Removable Base
Motor Sub Application
High Torque
Ins. Class
B
Motor Thermal Protection
Manual
Max. Ambient Temp.
40 °C
No. of Speeds
1
Motor Application
Farm Duty
Nominal Efficiency
81.8 %
Motor Bearings
Ball
RPM Range
1,701-1,800
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Shaft Dia.
5/8 in
Motor Frame Material
Rolled Steel
Standards
CSA Certified (258501), UL Recognized (E37403)
Motor Mounting Position
Horizontal
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Product Description
High torque farm-duty AC motors can power conveyors, silo unloaders, barn cleaners, compressors, and manure pumps under heavy load conditions. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
Compliance & Restrictions
WARNING: Cancer - www.P65Warnings.ca.gov.
Documents
Item Barcode
Frm Dty Mtr,Capstrt,Tefc,1-1/
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 1TMX2 | Frm Dty Mtr, CapStrt,TEFC, |
|
UNSPSC CODES | 26101311 | |
|
VMRS (ATA) CODES | 053-006-009 | Frm Dty Mtr, CapStrt,TEFC, |
