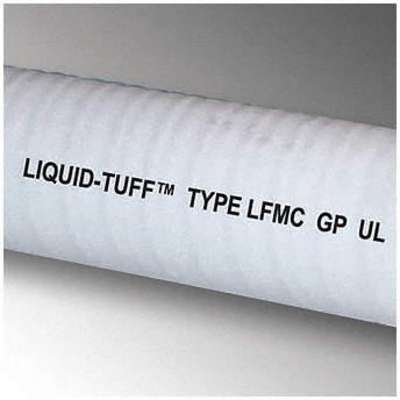

6200-Series Flexible Metallic Liquid Tight Conduit, 1/2" x 100 ft., 3" Bend, Gray

Zoom Icon

#919500-5 | Pkg Qty: 1

$232.56 pkg | $232.56 ea
Item Number 919500-5
Scanner Description Liquid-Tight Conduit,1/2 In x
Inventory Status Drop Ship Item
Weight 31.85 lb
Brand APPROVED SUPPLIER

Technical Specifications

Bend Radius
3 in.
Item
Flexible Metallic Liquid Tight Conduit
Brand
APPROVED SUPPLIER
Jacket Material
Flame Retardant PVC
Color Family
Gray
Length
100 ft.
Conduit Size
1/2 in.
Liquid Tight Conduit Application
Metallic, General Purpose
Conduit Trade Size
1/2 in.
Mfg Part Number
6202-30-00
Core Material
Hot Dipped Galvanized Steel
Outside Dia.
0.82 in.
Flexible Conduit Bend Radius
3 in.
Pack Quantity
1
Flexible Conduit Color
Gray
Series
6200
Flexible Conduit Core Material
Hot Dipped Galvanized Steel
Special Features
The 3/8 through 1-1/4 inch trade sizes are Square Lock formed and include an integral bonding strip of copper that is enclosed within the convolutions throughout their entire length, The 1-1/2 through 4-inch trade sizes are designed with a fully interlocked strip
Flexible Conduit Nominal Length
100 ft.
Standards
UL 1660 & CSA 22.2 No. 227.2 Type B, Conforms to The Requirements Of Section 14.5.5 Of The Electrical Standard For Industrial Machinery NFPA-79, RoHS and WEEE Compliant
Flexible Conduit Usable Temp. Range
-30° to 176°F
Temp. Range
-30° to 176°F
Inside Dia.
0.622 in.
Temp. Range (F)
-4° to 140°
Inside Diameter
0.622 in.

Product Description

Liquidtight, flexible, metallic conduit/raceway is for use in various applications per the NEC. Suitable for wet locations and for direct burial as well as concrete embedment. Constructed from interlocking galvanized steel strip with a rugged PVC jacket. Oil- and sunlight-resistant conduit is also flame retardant. Provides impact and crush protection for electrical power, control, and communication cables. Gray color. UL listed and CSA certified.

Item Barcode
9195005
  Name Item Description
Grainger Dropship Grainger Dropship 5YH56 Liquid-Tight Conduit,1/2
UNSPSC CODES UNSPSC CODES 39121420
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Liquid-Tight Conduit,1/2
