HUBBELL WIRING DEVICE-KELLEMS

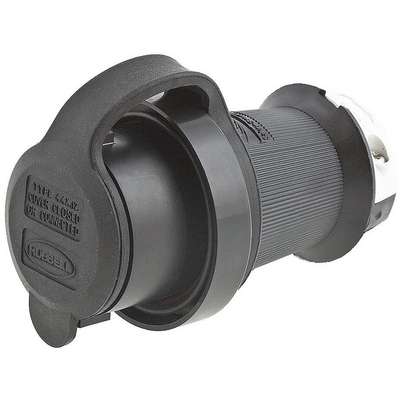

Hubbell Wiring Device-Kellems 20A Industrial Grade Shrouded Watertight Locking Plug, Black/White; NEMA Configuration: L5-20P
Hover over image to magnify
#919435-7 | Pkg Qty: 1
$126.55 pkg | $126.55 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
20 A
Maximum Wire Size
8 AWG
Antimicrobial
No
Mfr. Part Number
HBL2311SW
Blade Material
Brass
Minimum Operating Temperature
-40 °C
Body Length
2.77 in.
Minimum Wire Size
16 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Configuration - Plugs & Connectors
L5-20
Color Family
Black / White
NEMA Plug Configuration
L5-20P
Connection Orientation
Straight
NEMA Rating
4, 4X, 12
Cord Size
0.360 in. to 0.930 in.
Number of Blades
3
Corrosion Resistant
No
Number of Poles
2
Current Rating
20 A
Number of Wires
3
Description
Grounding
Overall Length
2.77 in.
Face Diameter
2.77 in.
Package Quantity
1
For Maximum Cable Diameter
0.93 in.
Phase
Single
For Minimum Cable Diameter
0.36 in.
Polarized
Yes
Grade
Industrial
Shipping Weight
.5 lb.
Grounding
Grounded
Shrouded
Yes
HP
1 HP
Special Features
Moisture, Dust and Weather Resistant
Horsepower
1 hp
Standards
CSA Certified Type 4, UL Listed
Housing Material
Polybutylene Terephthalate
Subcategory
Plugs
IP Rating
IP66
UL 94 Flammability Rating
V-0
Item
Watertight Locking Plug
Voltage
125V AC
Material
Impact Modified PBT
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
General
Amps - Plugs and Receptacles
20
NEMA Plug Configuration - Plugs and Receptacles
L5-20P
Grade - Plugs and Receptacles
Industrial
Special Features
Moisture, Dust and Weather Resistant
HP
1.0
Voltage - Plugs and Receptacles
125V AC
Product Description
Help prevent water ingress in electrical connections under hose-down conditions with a watertight, safety-shroud twist-lock. It features stainless steel hardware, a closure cap, 1-pc. thermoplastic housing, and lockout-tagout hole.
Expertly Selected Product Pairings
Item Barcode
Plug,125VAC,20A,L5-20P,2P,3W,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4CT65 | Plug,125VAC, 20A,L5-20P, |
 | UNSPSC CODES | 39121402 | |
 | VMRS (ATA) CODES | 053-007-002 | Plug,125VAC, 20A,L5-20P, |
