ATCO

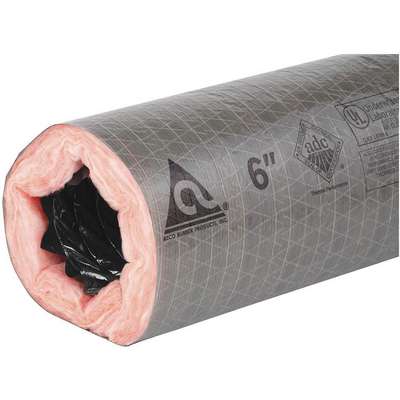

Atco Insulated Flexible Duct: 6 in Flex Duct Inside Dia., 2 1/2 in Flex Duct Wall Thick, Polyester
Hover over image to magnify
#919413-9 | Pkg Qty: 1
$82.29 pkg | $82.29 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
UL181, NFPA 90A & 90B, IMC, IRC, UMC 10-1 (ICC ES Report No. ESR-1268), HUD, Cities of Chicago, New York, San Francisco, County of Dade (Florida), California State Fire Marshall.
Material
Polyester
Brand
ATCO
Mfr. Part Number
17802506
Inside Diameter
6 in.
Package Quantity
1
Item
Insulated Flexible Duct
Shipping Weight
13.7 lb.
Length
25 ft.
Wall Thickness
2-1/2 in.
General
Compressed Size
38 in
Max. Air Flow
5,000 fpm
Flexible Duct Inside Dia.
6 in
Max. Pressure
6 in WC
Flexible Duct Length
25 ft
Max. Temp.
140â°F
Flexible Duct Wall Thickness
2 1/2 in
UPC Number
78
For Use With
Low Pressure Air Moving Systems
Vapor Transmission
0.6
Low Temp. Deg.
-20â°F
Product Description
Features double-ply vapor barrier with tridirectional reinforcements. Rated for indoor use.
- Rated positive pressure: 10" WC per UL 181
- Velocity: 5,000 fpm
- Flame spread/smoke developed: 25 / 50
Expertly Selected Product Pairings
Item Barcode
Insulated Flexible Duct,6 In.
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4TVN7 | Insulated Flexible |
 | UNSPSC CODES | 40141901 | |
 | VMRS (ATA) CODES | 053-008-003 | Insulated Flexible |
