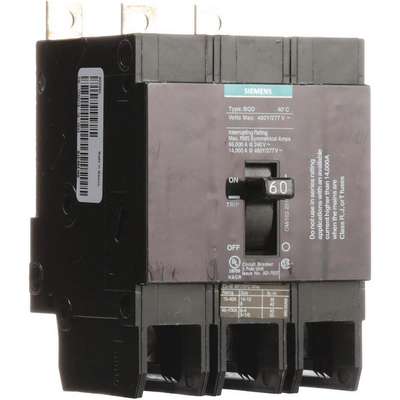

Siemens Bolt On Circuit Breaker, 60 Amps, Number of Poles: 3, 277/480VAC AC Voltage Rating

Hover over image to magnify
Bolt On Circuit Breaker,60A,3
PI_Asset_967429
PI_Asset_967430
PI_Asset_967431
PI_Asset_967432
PI_Asset_967433
Bolt On Circuit Breaker,60A,3
PI_Asset_967429
PI_Asset_967430
PI_Asset_967431
PI_Asset_967432
PI_Asset_967433
Siemens Bolt On Circuit Breaker, 60 Amps, Number of Poles: 3, 277/480VAC AC Voltage Rating Video

#919336-9 | Pkg Qty: 1

$1,151.74 pkg | $1,151.74 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Voltage Rating
480VAC
Instantaneous Trip
Fixed
Air @ 120 VAC
Not Rated
Item
Miniature Circuit Breaker
Air @ 125 VDC
Not Rated
Length
4.49 in.
Air @ 240 VAC
65kA
Maximum Air Rating
14kA at 480VAC
Air @ 277 VAC
14kA
Maximum Wire Size
1/0 AWG
Air @ 48 VDC
Not Rated
Mfr. Part Number
BQD360
Air @ 480 VAC
14.0kA
Minimum Wire Size
6 AWG (Al), 8 AWG (Cu)
Air @ 600 VAC
Not Rated
Number of Poles
3
Air @ 65 VDC
Not Rated
Package Quantity
1
Amperage
60 A
Panelboard Mounting
Bolt-On
Amps
60 A
Phase
Three
Brand
SIEMENS
Series
BQD
Circuit Breaker Type
Standard
Shipping Weight
1.8 lb.
DC Voltage Rating
Not Rated
Terminal Connection
Lug
Depth
2.7 in.
Type
Panelboard Mount
For Use With
Siemens P1 Panelboards
Voltage
480VAC
Frame Size
100A/BQD
Width
3 in.
General
AIR @ 240VAC
65kA
Circuit Breaker Mounting Style
Bolt On
AIR @ 277VAC
14kA
Compatible Panelboard/Load Center Series
P1
AIR @ 480VAC
14.0kA
Max. Operating Temp.
104°F
Circuit Breaker Actuator
Toggle
Standards
CSA Certified, HACR Rated

Product Description

These BQD series miniature circuit breakers are bolted into place in panelboards, so they're more stable than plug-in breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard.
