DAYTON

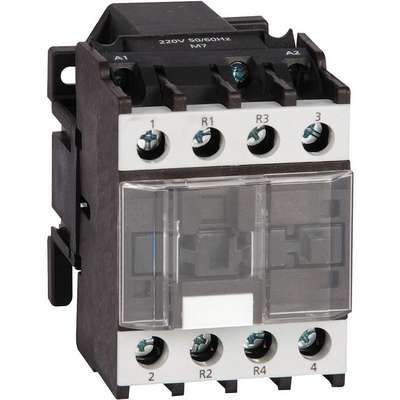

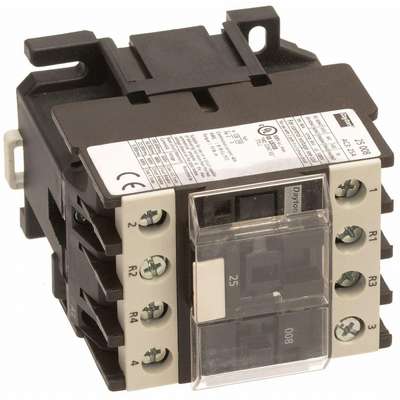

Dayton 240VAC IEC Magnetic Contactor; No. of Poles 4, Reversing: No, 25 Full Load Amps-Inductive
Hover over image to magnify
#919328-7 | Pkg Qty: 1
$93.40 pkg | $93.40 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action
Nonreversing
Hz
50/60
Brand
DAYTON
Item
IEC Magnetic Contactor
Coil Rating
100VA inrush, 8.5VA Sealed
Mfr. Part Number
6EAY7
Coil Volts
240 VAC
Mounting
DIN Rail/Screw
Contact Form
2NO/2NC
Number of Poles
4
Depth
3-3/4 in.
Package Quantity
1
Enclosure NEMA Rating
No Enclosure
Reversing
No
Enclosure Type
Open
Shipping Weight
.25 lb.
Height
2.2 in.
Width
2.2 in.
General
Contactor Type
IEC
HP @ 1 Phase - 230V
3
Full Load Amps-Inductive
25 A
HP @ 1 Phase - 240V
3 hp
Full Load Amps-Resistive
40 A
Special Features
Main Contact Configuration 2NC/2NO
HP @ 1 Phase - 120V
2 hp
Standards
UL,CSA, IEC
Product Description
IEC Contactors, Motor Starters, and Overload Relays
- Contactors
- 3-yr. warranty DIN rail or panel mount
- For industrial motor control. Mechanical life: 10 million cycles. 3-pole contactors should be paired with overload relays. 9 to 32A 3-pole contactors have 1NO auxiliary contact. 40 to 95A 3-pole contactors have 1NO/1NC auxiliary contacts. C-
Expertly Selected Product Pairings
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Iec Control Relay,2NO/2NC,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6EAY7 | IEC Control Relay,2NO/ |
 | UNSPSC CODES | 39121529 | |
 | VMRS (ATA) CODES | 053-006-009 | IEC Control Relay,2NO/ |
