GF PIPING SYSTEMS

Reducer Bushing, CPVC, Fitting Schedule/Class Schedule 80, 3/4" x 1/2" Pipe Size - Pipe Fitting

Hover over image to magnify

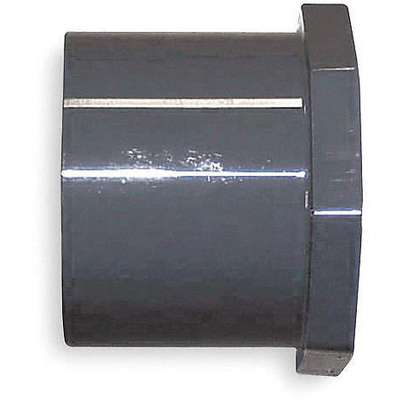

Reducer Bushing,CPVC,80,3/4 x
PI_Asset_928472
Reducer Bushing,CPVC,80,3/4 x
PI_Asset_928472

#919316-3 | Pkg Qty: 1

$4.31 pkg | $4.31 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Body Material
CPVC
Maximum Pressure
688 psi @ 73°F
Brand
GF PIPING SYSTEMS
Maximum Temperature (Deg. F)
210°F
Class
Schedule 80
Mfr. Part Number
9837-101
Color Family
Gray
Package Quantity
1
Connection Type
Spigot x Socket
Pipe Size
3/4 in. x 1/2 in.
Item
Reducer Bushing
Shipping Weight
.1 lb.
General
Fitting Pipe Size
3/4 in x 1/2 in
Fitting Side B Type
Socket
Fitting Side A Gender
Male
For Pipe Outside Diameter
3/4 in
Fitting Side A Nominal Pipe Size
3/4 in
For Pipe Schedule
80
Fitting Side A Outside Diameter
1 in
Low Lead Certified Standard
NSF 61
Fitting Side A Type
Spigot
Low Lead Compliance Level
Certified
Fitting Side B Gender
Female
Standards
ASTM D1784, NSF14 Certified
Fitting Side B Nominal Pipe Size
1/2 in
Temp. Range
32 Degrees to 200 Degrees F
Fitting Side B Outside Diameter
1 3/16 in

Product Description

This tough, lightweight, and corrosion-resistant GF PIPING SYSTEMS reducer bushing is highly resistant to acids, alkalis, alcohols, and many other corrosive materials. Fitting is much lighter (about 1/6th as much as steel) to help speed and simplify handling during installation, plus it won’t corrode, pit, rust, scale, nor is it subject to electrolysis. Material is not affected by soil conditions if fitting is buried. For outdoor applications that are exposed to sunlight, 2 coats of white-colored, water-base latex paint provide additional protection.
