DAYTON

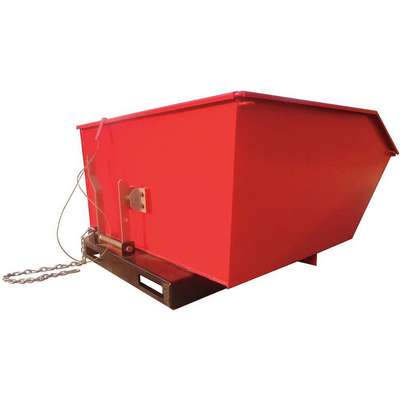

Dayton Low Profile, Self-Dumping Hopper with Chain/Cable Release; 41 in. H x 51-1/4 in. L x 49 in. W, 6000 lb. Load Capacity

Hover over image to magnify
Low Profile Hopper,6000 Lb,51
Low Profile Hopper,6000 Lb,51

#919246-9 | Pkg Qty: 1

$1,462.96 pkg | $1,462.96 ea
Load Capacity : 6000 lb.

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Angle
90 deg.
Hopper Release
Chain/Cable Release
Brand
DAYTON
Item
Self-Dumping Hopper
Color Family
Red
Load Capacity
6000 lb.
Container Material
Steel
Mfr. Part Number
5PKF9
Cubic Foot Capacity
40.5 cu. ft.
Overall Height
41 in.
Finish
Painted
Overall Length
51-1/4 in.
Fork Pocket Depth
24 in.
Overall Width
49 in.
Fork Pocket Height
2-1/2 in.
Package Quantity
1
Fork Pocket Width
7-1/2 in.
Shipping Weight
562.18 lb.
Hopper Base
Low Profile
General
Container Material - Hoppers and Cube Trucks
Steel
Gauge Steel
8
Cubic Yard Capacity
1.5 cu yd
Load Capacity - Hoppers and Cube Trucks
6,000 lb
Dump Angle
90°

Product Description

Self-Dumping Steel Hoppers

  • Red powder-coated finish on hopper, black base Hoppers Automatically dump loads when locking latch is released, then return to locked position. Constructed with precision robotic weld; base is formed steel. Safety chain secures hopper to fork truck, while cable enables dumping from fork truck seat. Low-Profile Feature a 90° dump angle and half-length fork entry. Hoppers return to locked position when lowered to ground.
