TJERNLUND

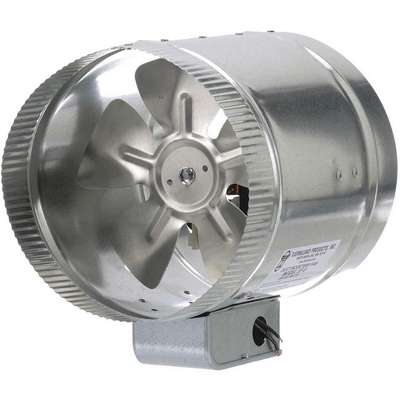

Tjernlund In-Line Duct Fan: 325 cfm Max., 8 in Duct, 18.6 W, 120V AC, 1 Ph, Galvanized Steel, 250 to 499 cfm
Hover over image to magnify
#919147-6 | Pkg Qty: 1
$125.36 pkg | $125.36 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearing Type
Sleeve
Mfr. Part Number
EF-8
Brand
TJERNLUND
Motor Enclosure
Open Air Over
Housing Diameter
8 in.
Mounting Position
Horizontal or Vertical
Housing Material
Galvanized Steel
Number of Speeds
1
Item
Axial Duct Booster
Package Quantity
1
Length
9 in.
Shipping Weight
4.45 lb.
General
Airflow @ 0.000 in SP
325 cfm
Motor Output Power
18.6 W
Airflow @ 0.000 in SP - Range
250 to 499 cfm
Motor Speed
3,000 RPM
Airflow @ 0.000 in. SP - Range
0 to 999 cfm
Nameplate Voltage
120V AC
For Fan Type
Tubeaxial
Nominal Voltage
120V AC
High-Efficiency Motor
No
Overall Dimensions H x W
9 in x 8 in
Includes
External Junction Box for Easy Wiring
Speed Control Included
No
Maximum Inlet Air Temperature
150 Degrees F
Speed Controllable
Yes
Product Description
Designed for powered air intake and exhaust systems, or to boost air flow in hard-to-heat or -cool areas. Housing with built-in duct stop on the inlet and crimped edge on the outlet. Compatible with optional Speed Control No. 48C172, sold separately.
