BUSSMANN

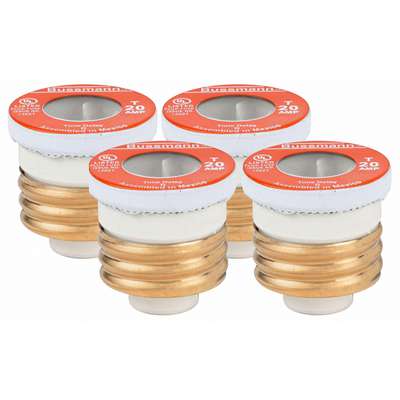

Bussmann Plug Fuse: 20A, 125V AC, Screw-In Body, Nonrejection Fits Fuse Block, Time Delay, 4 PK

Hover over image to magnify
Fuse,20A,T,125VAC,Screw-In,PK4
PI_Asset_1983832
Fuse,20A,T,125VAC,Screw-In,PK4
PI_Asset_1983832

#918968-6 | Pkg Qty: 4

$51.12 pkg | $12.78 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Voltage Rating
125 VAC
Indicating / Nonindicating
Indicating
Amperage
20 A
Interrupt Rating
10kA at 125VAC
Body Material
Ceramic
Item
Fuse
Body Style
Screw-In (Type S)
Mfr. Part Number
T-20
Brand
BUSSMANN
Pack Quantity
4
DC Voltage Rating
Not Rated
Rejection / Nonrejection
Nonrejection
Element
Dual
Series
T
Functionally Equal To
Mersen/Ferraz Shawmut GT, Littelfuse TOO
Shipping Weight
.2 lb.
Fuse Amps
20A
Speed
Time Delay
Fuse Speed
Time Delay
Type
Low Voltage
Fuse Voltage Rating
125 VAC
Voltage Rating
125 VAC
Indicating
Yes
General
Equivalent Series
GT, T, TOO
Standards
CE, UL 248-11 Guide JFHR, CSA Class 1423-01
Fits Fuse Block Style
Nonrejection
Visual Indication
Indicating

Product Description

Time-delay plug fuses are medium- to heavy-duty fuses for protecting residential or industrial electrical circuits with motors, relays, or solenoids. These slow-blow plug fuses tolerate temporary inrush currents without opening. Series SL fuses are medium-duty fuses for residential circuits. Series S and T fuses provide heavy-duty protection for industrial motors or critical residential circuits. Series SL and S fuses have a porcelain-threaded rejection base that mates with a rejection adapter in the fuse holder to prevent installation of the wrong size fuse. Series T fuses have a brass-threaded Edison base that screws directly into a fuse holder.

Plug fuses are screw-in fuses for protecting against overcurrent in residential and industrial branch circuits as well as motor circuits. They are commonly found in a box cover unit or main fuse panel and are used to prevent damage to equipment such as pumps, power tools, and HVAC blowers. These plug fuses are color-coded by voltage to help prevent installation of a mismatched fuse. They have a window that reveals whether the fuse element has blown.
