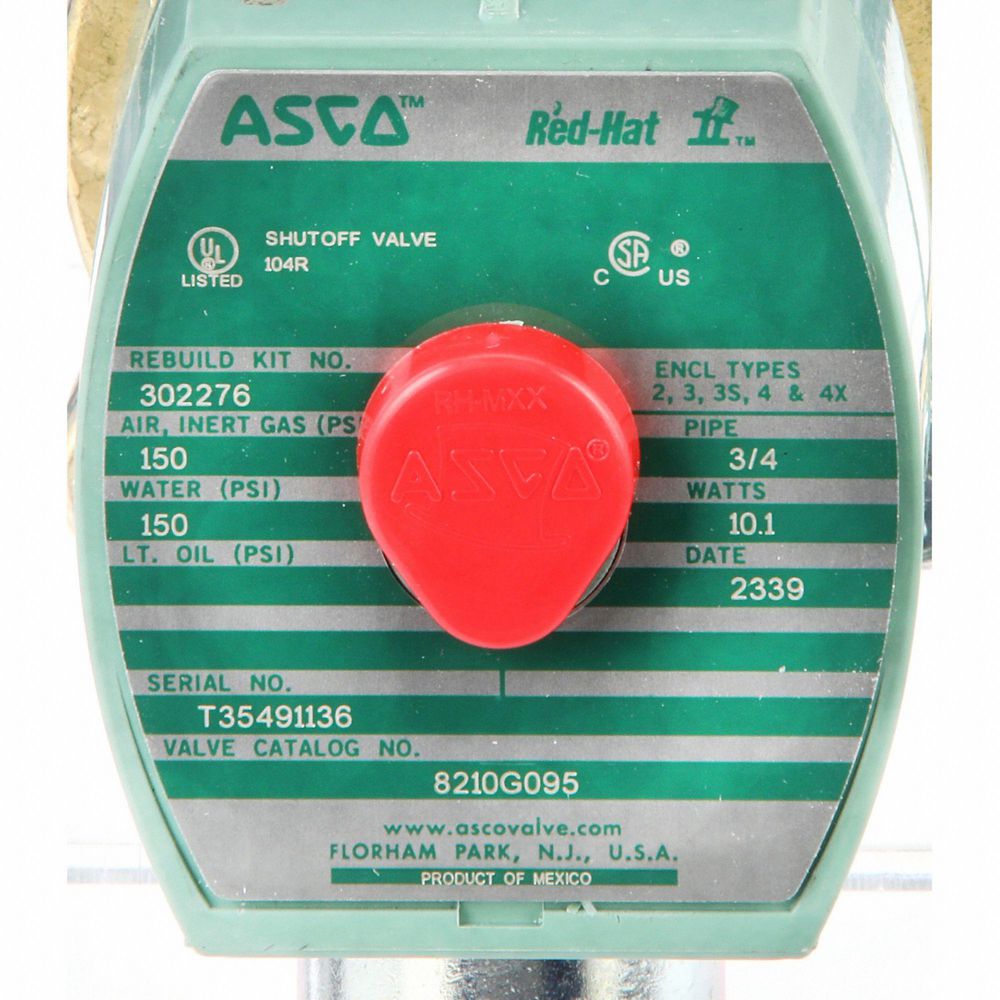

Solenoid Valve: 3/4 in Pipe Size - Valves, 120V AC, 0 psi Min. Op Pressure Differential, Brass
Hover over image to magnify
#918953-6 | Pkg Qty: 1
$218.02 pkg
| $218.02 ea
Technical Specifications
Key Specifications
Agency Compliance
CSA Certified
Mfr. Part Number
8210G095
Application
Car Wash, Air Compressors, Pumps, Laundry Equipment, Industrial Water Control
NEMA Rating
1, 2, 3, 3S, 4, 4X
Body Material
Brass
Overall Height
4-1/8 in.
Brand
REDHAT
Overall Length
2-13/16 in.
Coefficient of Volume
5
Overall Width
2-5/16 in.
Configuration
Normally Closed
Pack Quantity
1
Electrical Connections
1/2 in. Conduit w/18 in. Leads
Pipe Size
3/4 in.
Hz
60
Shipping Weight
2.3 lb.
Item
Solenoid Valve
Valve Design
2-Way/2-Position
Maximum Fluid Temperature
180°F
Voltage
120 VAC
Media Type
Air/Inert Gas and Water
orifice Dia._spec_s
3/4 in.
General
Body Material - Valves
Brass
Media - Valves
Air, Inert Gases, Water
Center Line Pipe Center Size
3 7/16 in
Min. Operating Pressure Differential
0 psi
Coil Enclosure
Watertight No Junction Box
Pipe Size - Valves
3/4 in
Coil Insulation Class
F
Seal Material - Valves
NBR
Environmental Rating - Valves
Indoor, Outdoor
Solenoid Valve Product Group
Solenoid Valve
Max. Fluid Temp.
180 Degrees F
Valve Configuration
Normally Closed
Max. Operating Pressure Differential Air/Inert Gas
150 psi
Valve Ways and Positions
2-Way/2-Position
Max. Operating Pressure Differential Water
150 psi
Product Description
This Red Hat® solenoid valve is a 1-pc. molded epoxy coil enclosure with built-in 1/2" NPT conduit hub with strain relief. Ideal for use in high-flow valves for liquid, corrosive, and air/inert gas service applications, including air compressors, pumps, and industrial water control.
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Solenoid Valve,2/2,3/4 In,Nc,
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 3UL19 | Solenoid Valve,2/2,3/ |
|
UNSPSC CODES | 40141605 | |
|
VMRS (ATA) CODES | 053-006-009 | Solenoid Valve,2/2,3/ |
